02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

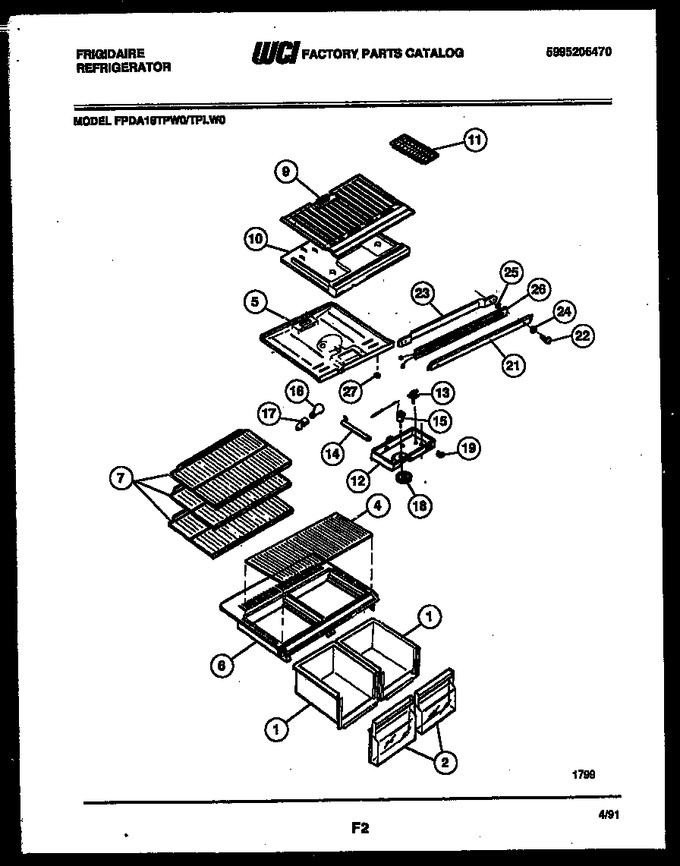

1	3206438		Pan-crisper (2)			Immediately	$ 227.80
2	5303273064		Front-vegetable		Appelez-nous	-
4	3206442		Insert-cover Crisper		Appelez-nous	-
5	3206454		Top-refrigerator		Appelez-nous	-
6	3206443		Cover-crisper		Appelez-nous	-
7	5303206766		Shelf-sliding (3)		Appelez-nous	-
9	3206455		Bottom-freezer		Appelez-nous	-
10	3206456		Divider-styro		Appelez-nous	-
11	5303001324		Ice Tray (2)		Appelez-nous	-
12	3206390		Box-control		Appelez-nous	-
13	5303018894		Control-temperature		Appelez-nous	-
14	3018891		Housing, Cap Tube		Appelez-nous	-
15	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
16	5303001179		Light Bulb		Appelez-nous	-
17	218906802		Light Socket   (Replaces: 5308000815)				$ 17.72
18	3206391		Knob-cold Control		Appelez-nous	-
19	3206389		Switch-energy Saver		Appelez-nous	-
21	3206450		Mullion-almd		Appelez-nous	-
22	3206134		Screw (2)		Appelez-nous	-
23	5303206752		Strap-mullion		Appelez-nous	-
24	08003607		Washer-steel (2)		Appelez-nous	-
25	5303206753		Spacer-mullion (2)		Appelez-nous	-
26	3206445		Heater-mullion		Appelez-nous	-
27	5309918806		Switch, Light			Immediately	$ 21.97
10A	3205266		Protector-edge (2) (non-illustrated)				$ 80.09
13A	5303001260		Screw				$ 6.73
15A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
2A	5303273065		Front-fruits		Appelez-nous	-
5A	5303001380		Screw		Appelez-nous	-
