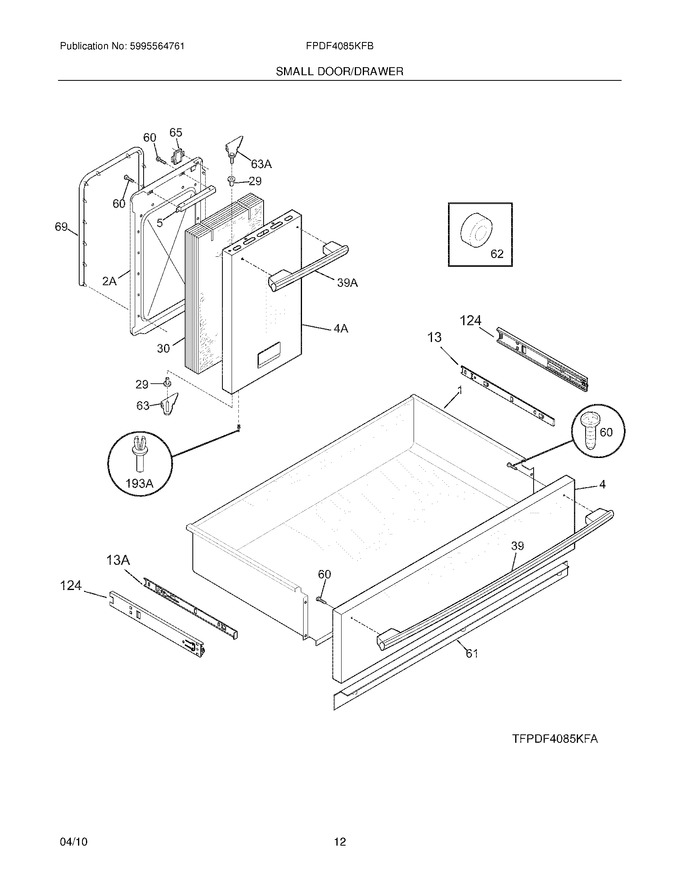

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
4	318158223		Panel,drawer ,stainless		Appelez-nous	-
5	318404500		Spacer,door Handle		Appelez-nous	-
13	318259507		Glide,warmer ,inner Rh			Immediately	$ 69.01
29	318141800		Spacer,hinge Pin ,upper/lower				$ 14.49
30	318285016		Insulation,oven Door		Appelez-nous	-
39	318919701		Handle,drawer ,stainless		Appelez-nous	-
60	5304500008		Screw,10-24 X 1.750   (Replaces: 5304416408)				$ 12.13
61	318107700		Toeplate		Appelez-nous	-
62	5303310504		Spacer,(2)		Appelez-nous	-
63	318024508		Hinge,door ,lwr Small Oven ,lower				$ 133.72
65	318090220		Strike-door				$ 57.04
69	318053110		Seal,small Oven Door				$ 216.98
124	316105501		Glide,outer/rh & Lh ,(2)				$ 90.72
13A	318259506		Glide,warmer ,inner Lh				$ 69.01
2A	318048225		Liner,inner Door ,small Oven				$ 106.37
39A	318919703		Handle,door ,stainless ,small Oven		Appelez-nous	-
4A	318324103		Panel,door ,small Oven ,w/nameplate		Appelez-nous	-
63A	318024509		Hinge,door ,upr Small Oven				$ 118.28
F193	5303321106		Plug-button				$ 11.60
NI	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	318229000		Baffle,small Door		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303317975		Screw,10 X 1/2		Appelez-nous	-
NI	5303288565		Screw,8-32 X 3/16 ,(8)   (Replaces: 5303323134)				$ 3.12
NI	134716700		Washer,flat ,(2)   (Replaces: 3201909)				$ 2.12
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323146		Rivet		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
