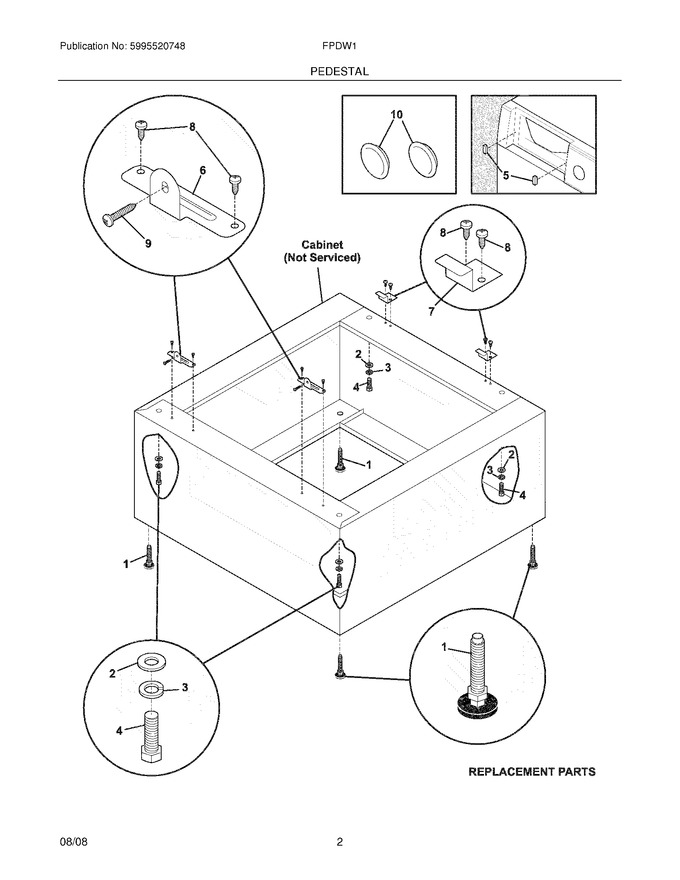

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131841600 | Leveling Leg Assy,bolt,pad & Nut |
|
$ 29.06 | |||||
| 2 | 134175500 | Washer,flat ,3/8 |
|
$ 9.87 | |||||
| 3 | 131304500 | Washer-lock,3/8 |
|
$ 12.53 | |||||
| 4 | 134175400 | Bolt,hex Head ,3/8-16 X 1.00 |
|
$ 7.40 | |||||
| 5 | 134192500 | Foam Pad,dispenser Area ,rear |
|
- | |||||
| 6 | 131435800 | Bracket,pedestal Mtg ,front |
|
$ 31.73 | |||||
| 7 | 134172000 | Bracket,mounting ,rear |
|
- | |||||
| 8 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.36 | |||||
| 9 | 131754000 | Screw,pan Head ,10-16ab X 1.00 |
|
- | |||||
| 10 | 131397000 | Plug-dome-white |
|
$ 14.12 | |||||
| NI | 134813200 | Kit,helix Insert |
|
$ 14.65 |
