SELECT A DIAGRAM

01 - Blower


02 - Control Panel


03 - Door


04 - Pump & Motor


05 - Racks


06 - Rinse Aid & Soap Dispenser


07 - Tub

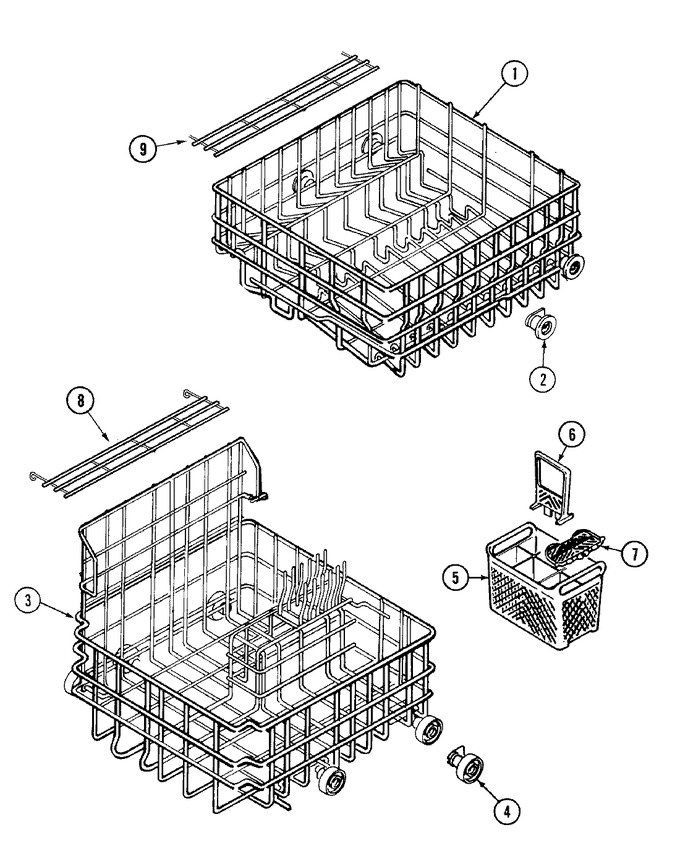

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	903845		Upper Rack Assy	A0	Appelez-nous	-
2	WP903093		Wheel Assembly (upr)   (Replaces: 903093)	A0		Immediately	$ 9.65
3	903851		Rack, Lower (as Pkg)	A0	Appelez-nous	-
4	WP99002780		Wheel Assembly (lwr)   (Replaces: 903095)	A0		Immediately	$ 9.90
5	WP6-918873		Basket, Silverware (w/cover)   (Replaces: 903446)	A0		Immediately	$ 54.28
6	Y912708		Handle, Silverware Basket	A0	Appelez-nous	-
7	WP6-918873		Cover, Silverware Basket   (Replaces: 912639)	A0		Immediately	$ 54.28
8	903436		Shelf, Rack (lwr)	A0			$ 19.66
9	903433		Shelf, Upper	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
