SELECT A DIAGRAM

01 - Blower (dwu8860aae & Dwu8860abe)


02 - Control Panel (dwu8860aae & Dwu8860abe)


03 - Door (dwu8860aae & Dwu8860abe)


04 - Pump & Motor (dwu8860aae & Dwu8860abe)

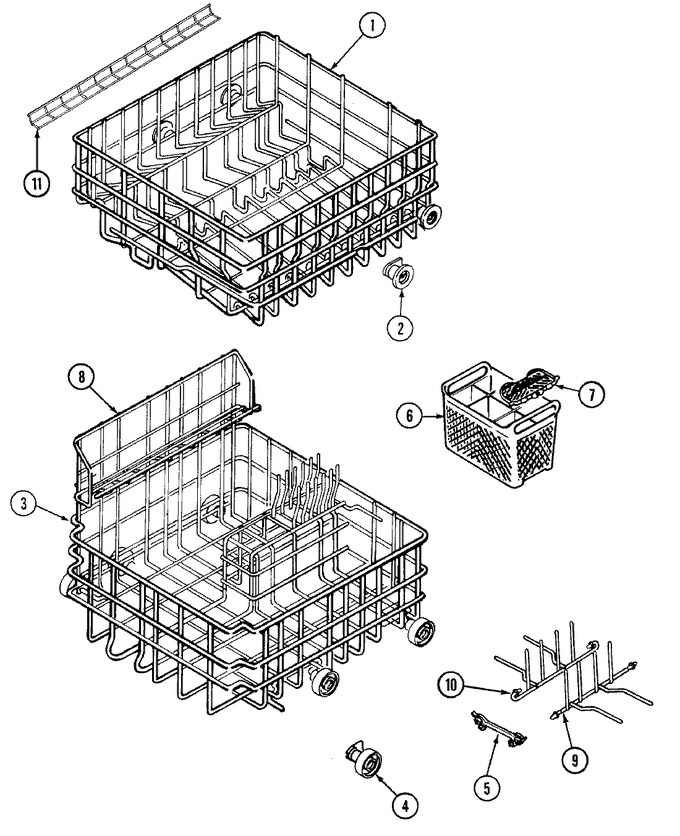

05 - Racks (dwu8860aae & Dwu8860abe)


06 - Rinse Aid\soap Dispenser (dwu8860aae)


07 - Tub (dwu8860aae & Dwu8860abe)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	903844		Rack, Dishwasher	A0	Appelez-nous	-
2	WP903093		Wheel Assembly (upr)   (Replaces: 903093)	A0		Immediately	$ 9.65
3	903850		Lower Rack Assy	A0	Appelez-nous	-
4	WP99002780		Wheel Assembly (lwr)   (Replaces: 903095)	A0		Immediately	$ 9.90
5	WPY912709		Clip, Adjustable Peg   (Replaces: Y912709)	A0		Immediately	$ 7.07
6	WP6-918873		Basket, Silverware (w/cover)   (Replaces: 903446)	A0		Immediately	$ 54.28
7	WP6-918873		Cover, Silverware Basket   (Replaces: 912639)	A0		Immediately	$ 54.28
8	903436		Shelf, Rack (lwr)	A0			$ 19.66
9	903437		Tine, Bowl (front)	A0	Appelez-nous	-
10	Y912710		Sleeve, Folding Tines	A0	Appelez-nous	-
10	903438		Tine, Bowl (rear)	A0	Appelez-nous	-
11	903433		Shelf, Upper	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
