New Model Search:

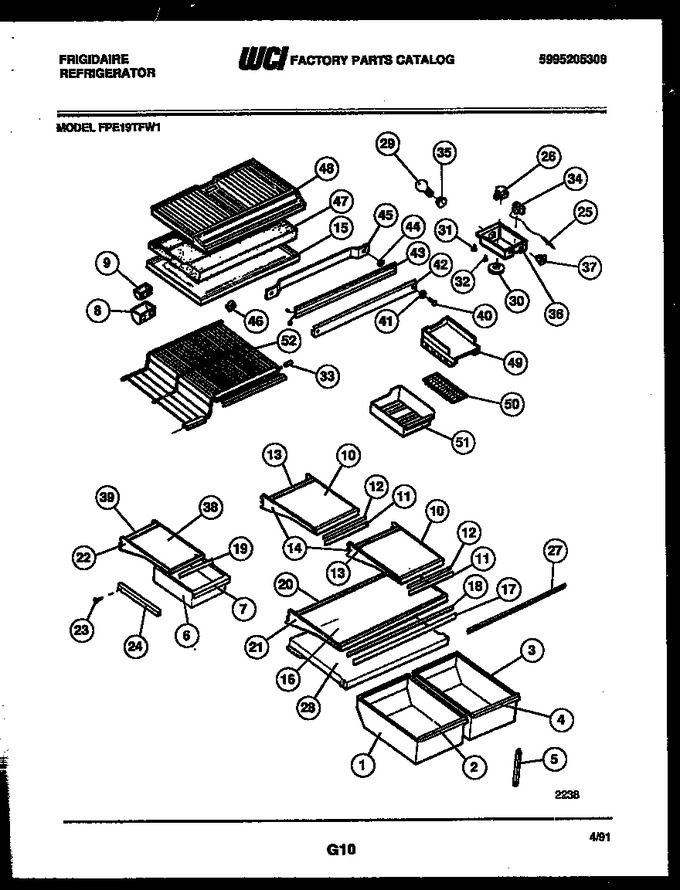

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018873 | Pan-storage Lh |
|
- | |||||
| 2 | 3017423 | Trim, Pan, Lh |
|
- | |||||
| 3 | 3018982 | Pan-storage Rh |
|
- | |||||
| 4 | 3017422 | Trim, Pan, Rh |
|
- | |||||
| 5 | 5303206507 | Support-cover-adj |
|
- | |||||
| 6 | 3018987 | Pan, Meat |
|
- | |||||
| 7 | 3018986 | Trim, Meat Pan |
|
- | |||||
| 8 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 9 | 5308014667 | Air Deflector |
|
- | |||||
| 10 | 3200315 | Glass-shelf (2) |
|
- | |||||
| 11 | 3018989 | Trim-shelf (2) |
|
- | |||||
| 12 | 3200316 | Retainer (2) |
|
- | |||||
| 13 | 3200317 | Retainer-rear (2) |
|
- | |||||
| 14 | 3200318 | Frame-1/2 Shelf (2) |
|
- | |||||
| 15 | 3018993 | Top - Refrigerator |
|
- | |||||
| 16 | 5303200319 | Glass-shelf |
|
- | |||||
| 17 | 3018980 | Glass-shelf |
|
- | |||||
| 18 | 3200321 | Retainer |
|
- | |||||
| 19 | 3200316 | Retainer-meat Shelf |
|
- | |||||
| 20 | 3200326 | Retainer-rear |
|
- | |||||
| 21 | 3200327 | Frame - Full Shelf |
|
- | |||||
| 22 | 3200328 | Frame-meat Shelf |
|
- | |||||
| 23 | 08014528 | Screw (6) |
|
$ 4.31 | |||||
| 24 | 5303210016 | Hanger Lh |
|
$ 134.09 | |||||
| 25 | 3018891 | Housing, Cap Tube |
|
- | |||||
| 26 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 27 | 5303200329 | Gasket, Cover |
|
- | |||||
| 28 | 5303018983 | Cover, Crisper |
|
- | |||||
| 29 | 5303001179 | Bulb, Light |
|
- | |||||
| 30 | 3018893 | Knob, Cold Control |
|
- | |||||
| 31 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 32 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 33 | 3201150 | Cap Protector (2) |
|
$ 4.57 | |||||
| 34 | 5303018894 | Control, Cold |
|
- | |||||
| 35 | 218906802 | Socket, Light (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 36 | 3018895 | Box, Control |
|
- | |||||
| 37 | 5303018896 | Switch, Rocker |
|
- | |||||
| 38 | 3200330 | Glass-meat Shelf |
|
- | |||||
| 39 | 3200331 | Retainer-rear |
|
- | |||||
| 40 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 41 | 5303206754 | Washer-mullion Mtg (2) |
|
- | |||||
| 42 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 43 | 5303210351 | Mullion Heater |
|
- | |||||
| 44 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 45 | 5308010008 | Strap-mullion |
|
- | |||||
| 46 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 47 | 3018994 | Divider |
|
- | |||||
| 48 | 5303211427 | Bottom - Freezer |
|
- | |||||
| 49 | 08009824 | Ice Tray Compartment |
|
- | |||||
| 50 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 51 | 5303212895 | Ice Container |
|
- | |||||
| 52 | 3018979 | Freezer Rack |
|
- | |||||
| *45469 | 3018978 | Trim |
|
- | |||||
| *45469 | 08012329 | Label-im |
|
- | |||||
| *45469 | 3017427 | Trim |
|
- | |||||
| 16A | 3200901 | Rail-glass Support-side (non-illustrated) |
|
- | |||||
| 19A | 3200322 | Trim-meat Shelf (non-illustrated) |
|
- | |||||
| 24A | 5303210017 | Hanger Rh (non-illustrated) |
|
$ 107.89 | |||||
| 28A | 3018984 | Trim, Crisper Cover (non Illustrated) |
|
- | |||||
| 28B | 3200389 | Glass-pan Cover (non-illustrated) |
|
- | |||||
| 47A | 5303001380 | Screw |
|
- | |||||
| 47B | 3018900 | Wiring Harness (non-illustrated) |
|
- | |||||
| 48A | 3205266 | Protector-edge (2) (non-illustrated) |
|
$ 80.09 | |||||
| 50A | 5308002748 | Screw |
|
- | |||||
| 9A | 5303200590 | Extension & Insulation Air Deflector (non-illustrated) |
|
- |
