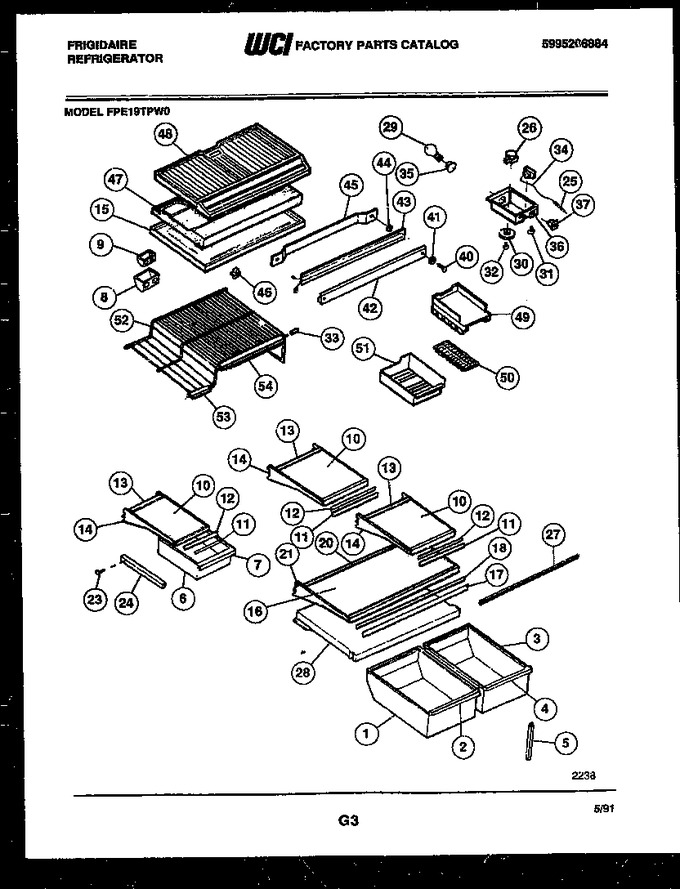

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018873		Pan-storage Lh		Appelez-nous	-
2	5303272523		Trim-pan Lh		Appelez-nous	-
3	3018982		Pan-storage Rh		Appelez-nous	-
4	5303272529		Trim-pan Rh		Appelez-nous	-
5	5303206507		Support-cover-adj		Appelez-nous	-
6	3018987		Pan, Meat		Appelez-nous	-
7	5303272530		Trim, Meat Pan		Appelez-nous	-
8	5303001448		Cover-air Deflector		Appelez-nous	-
9	5308014667		Air Deflector		Appelez-nous	-
10	5303211967		Glass-shelf (3)		Appelez-nous	-
11	5303272543		Trim-shelf (3)		Appelez-nous	-
12	5303209263		Retainer (3)		Appelez-nous	-
13	5303211828		Retainer-rear (3)		Appelez-nous	-
14	5303209869		Frame-1/2 Shelf (3)		Appelez-nous	-
15	3018993		Top - Refrigerator		Appelez-nous	-
16	5303211964		Glass, Shelf		Appelez-nous	-
17	5303272550		Trim		Appelez-nous	-
18	5303209274		Retainer		Appelez-nous	-
20	5303211962		Retainer-rear		Appelez-nous	-
21	5303210022		Frame-full Shelf		Appelez-nous	-
23	08014528		Screw (6)				$ 4.31
24	5303210016		Hanger Lh				$ 134.09
25	3018891		Housing, Cap Tube		Appelez-nous	-
26	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
27	5303200329		Gasket, Cover		Appelez-nous	-
28	5303018983		Cover, Crisper		Appelez-nous	-
29	5303001179		Bulb, Light		Appelez-nous	-
30	3018893		Knob, Cold Control		Appelez-nous	-
31	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
32	5303001260		Screw				$ 6.73
33	3201150		Cap Protector (2)				$ 4.57
34	5303018894		Control, Cold		Appelez-nous	-
35	218906802		Socket, Light   (Replaces: 5308000815)				$ 17.72
36	3018895		Box, Control		Appelez-nous	-
37	5303018896		Switch, Rocker		Appelez-nous	-
40	5308012258		Screw				$ 2.25
41	5303206754		Washer-mullion Mtg (2)		Appelez-nous	-
42	5303200370		Mullion, Almond		Appelez-nous	-
43	5303210351		Mullion Heater		Appelez-nous	-
44	5303200464		Spacer, Mullion (2)		Appelez-nous	-
45	5308010008		Strap-mullion		Appelez-nous	-
46	5309918806		Switch, Light			Immediately	$ 21.97
47	3018994		Divider		Appelez-nous	-
48	5303211427		Bottom - Freezer		Appelez-nous	-
49	08009824		Ice Tray Compartment		Appelez-nous	-
50	01121808		Ice Tray, Plastic		Appelez-nous	-
51	5303212895		Ice Container		Appelez-nous	-
52	3018979		Freezer Shelf-step		Appelez-nous	-
53	5303272521		Trim-shelf		Appelez-nous	-
54	5303272524		Trim Shelf		Appelez-nous	-
*94278	08012329		Label-im		Appelez-nous	-
15A	5303001380		Screw		Appelez-nous	-
24A	5303210017		Hanger Rh (non-illustrated)				$ 107.89
28A	3018984		Trim, Crisper Cover (non Illustrated)		Appelez-nous	-
28B	5303211968		Glass-crisper Cover (non-illustrated)		Appelez-nous	-
47A	3018900		Wiring Harness (non-illustrated)		Appelez-nous	-
48A	3205266		Protector-edge (2) (non-illustrated)				$ 80.09
50A	5308002748		Screw		Appelez-nous	-
9A	5303200590		Extension & Insulation-air (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
