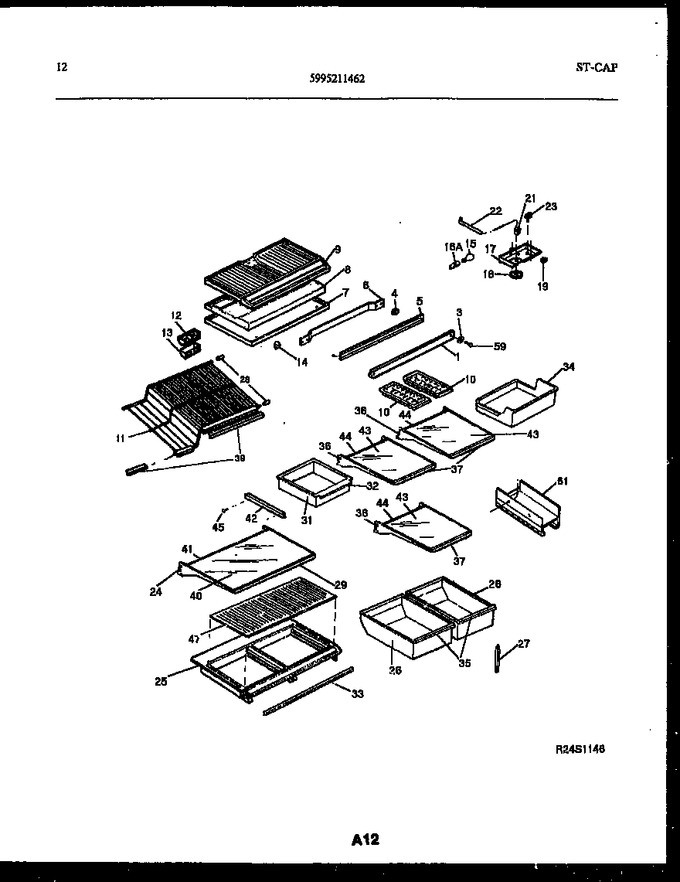

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	5303206606		Cover-crisper Pan		Appelez-nous	-
26	5303275591		Pan-crisper, Lh		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		Cap-protector				$ 4.57
29	5303275679		Trim-full Shelf		Appelez-nous	-
31	5303276735		Pan-meat		Appelez-nous	-
32	5303276821		Trim-meat Pan		Appelez-nous	-
33	5303200329		Gasket - Crisper Cover		Appelez-nous	-
34	5303275651		Container-ice		Appelez-nous	-
35	5303275757		Trim-crisper Pan, Rh		Appelez-nous	-
36	5303279431		Frame-half Shelf, Cantilever, (3)		Appelez-nous	-
37	5303275678		Trim-half Shelf, (3)		Appelez-nous	-
39	5303275677		Trim-frzr Shelf, Small		Appelez-nous	-
40	5303276779		Shelf-glass, Full Shelf		Appelez-nous	-
41	5303211962		Trim-full Shelf, Rear		Appelez-nous	-
42	5303276781		Hanger-meat Pan, Rh				$ 59.17
43	5303276780		Shelf-glass, Half/meat Kpr, (3)		Appelez-nous	-
44	5303211828		Trim-half Shelf, Rear, (3)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
45	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
47	5303275650		Insert-crisper Cover, Glass		Appelez-nous	-
59	5308012258		Screw				$ 2.25
61	08009824		Compartment-ice Tray		Appelez-nous	-
25A	5303275810		Trim-crisper Cover (non-illustrated)		Appelez-nous	-
25B	5303275621		Control-humidity (non-illustrated)		Appelez-nous	-
26A	5303275593		Pan-crisper, Rh		Appelez-nous	-
35A	5303275758		Trim-crisper Pan, Lh		Appelez-nous	-
39A	5303276783		Trim-frzr Shelf, Large		Appelez-nous	-
40A	5303209274		Retainer-glass (non-illustrated)		Appelez-nous	-
42A	5303276782		Hanger-meat Pan, Lh (non-illustrated)				$ 107.84
43A	5303209263		Retainer-glass (2) (non-illustrated)		Appelez-nous	-
