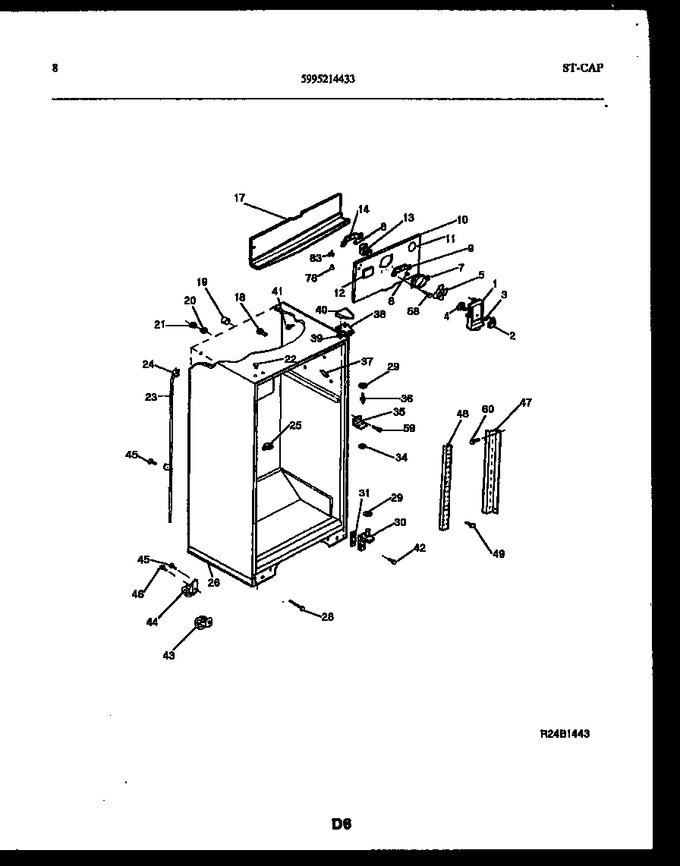

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202336		Trim, Cabinet Corner, White, (4)		Appelez-nous	-
38	5308012843		Bracket-upper Hinge				$ 71.47
39	5303001037		Shim - Upper Hinge				$ 12.39
40	5308012820		Cover-upper Hinge, White		Appelez-nous	-
41	5304509705		Grommet, Shelf Mtg   (Replaces: 5303001609)				$ 10.01
42	5303001320		Screw-hng/gusset Mtg, Hx Wshr Hd Mach, 1/4-20 X 5/8, (6)		Appelez-nous	-
43	5303212490		Roller Assy, Front, (2)		Appelez-nous	-
44	5308009773		Roller Assy, Rear, (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5308009762		Bolt, Roller Mtg, Hx Wshr Hd Mach, 1/4, 28 X 1/2, (2)		Appelez-nous	-
47	5308000302		Channel, Shelf Mtg, Side, (2)		Appelez-nous	-
48	5303015409		Channel-shelf Mtg, Center		Appelez-nous	-
49	5308016568		Screw-chan/air Duct, Cr Pan Head, 8(a) X 1-1/2		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	5308012258		Screw				$ 2.25
60	5308010253		Screw		Appelez-nous	-
78	5303210353		Screw-connector Brkt, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
83	5308000107		Bracket-connector				$ 33.23
*56993	5308016571		Plug-button, Liner				$ 4.79
38A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
38B	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44
41A	5304500407		Grommet, Shelf Mtg, Lh (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
