SELECT A DIAGRAM

01 - Blower, Float & Water Level Switch


02 - Control Panel


03 - Door


04 - Pump & Motor


05 - Pump & Motor (series 34)


06 - Rinse Aid & Soap Dispenser


07 - Track & Rack Assembly


08 - Tub


09 - Wiring Information


10 - Wiring Information

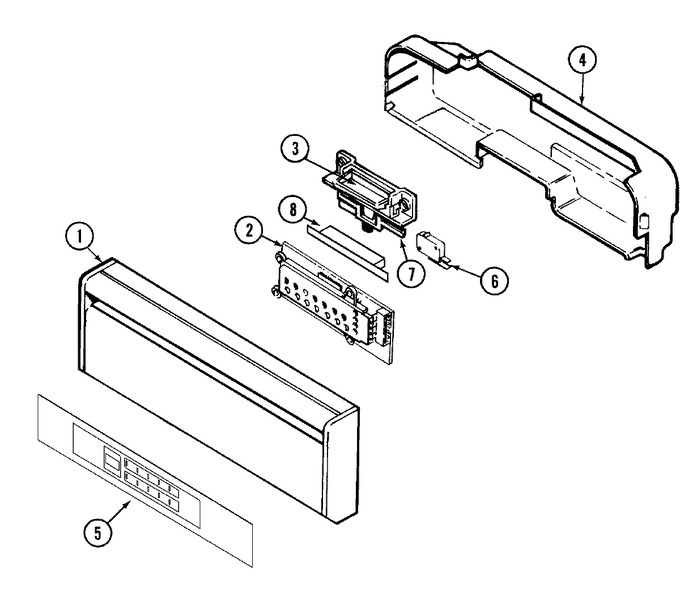

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001708		Panel, Control	32	Appelez-nous	-
1	99001448		Panel, Control (blk)	10	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
1	99001837		Panel, Control (blk)	34	Appelez-nous	-
2	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	913180		Shield, Control	10	Appelez-nous	-
2	99001842		Pcb & Mounting Plate Assy.	34	Appelez-nous	-
2	99001531		Pcb & Mounting Plate Assy.	10	Appelez-nous	-
3	99002254		Holder, Door Switch   (Replaces: 99001077)	10			$ 116.79
3	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
4	99001545		Barrier, Control Panel	34	Appelez-nous	-
4	99001190		Barrier, Control Panel	10	Appelez-nous	-
5	99001462		Overlay, Control Panel (blk)	10	Appelez-nous	-
6	99002254		Switch, Door   (Replaces: 903086)	10			$ 116.79
7	99001402		Foam, Latch Handle	10	Appelez-nous	-
7	99001401		Pad, Latch	10	Appelez-nous	-
7	W10834433		Handle, Latch (blk)   (Replaces: 99001078)	10		Immediately	$ 108.37
8	99001420		Liner, Handle Hole	10	Appelez-nous	-
9	99001450		Wire Harness, Main	10	Appelez-nous	-
10	Y913176		Clip, Wire Harness	10	Appelez-nous	-
10	WPW10339879		Strap, Cable   (Replaces: 912266)	10			$ 7.11
11	99001453		Manual, Use & Care (french)	10	Appelez-nous	-
11	99001877		Manual, Use & Care (french)	34	Appelez-nous	-
11	99001452		Manual, Use & Care	10	Appelez-nous	-
