01 - Blower

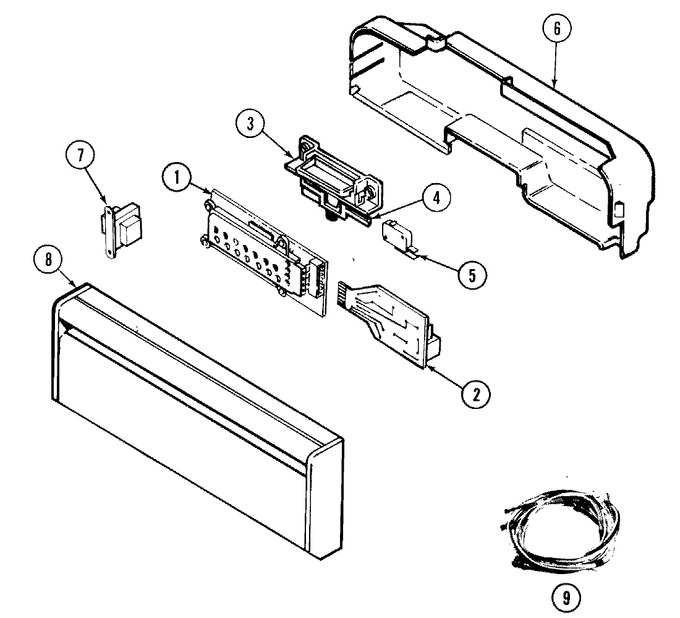

02 - Control Panel


03 - Door


04 - Pump & Motor


05 - Racks


06 - Rinse Aid & Soap Dispenser


07 - Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	903820		Pcb & Mtg Plate Assembly	A0	Appelez-nous	-
2	903206		Relay Assy	A0	Appelez-nous	-
2	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
3	Y912664		Holder, Door Switch	A0			$ 38.66
3	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
4	12001115		Kit, Latch Handle (blk)	A9			$ 62.49
4	Y912665		Handle, Latch (blk)	A0	Appelez-nous	-
5	99002254		Switch, Door   (Replaces: 903086)	A0			$ 116.79
6	Y912667		Barrier, Control Panel	A0	Appelez-nous	-
7	902935		Transformer	A0	Appelez-nous	-
7	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
8	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
8	903839		Control Panel Assy (blk)	A0	Appelez-nous	-
9	Y913176		Clip, Wire Harness	A0	Appelez-nous	-
9	903337		Wire Harness, Main	A0	Appelez-nous	-
10	Y912824		Manual, Use & Care (frch)	A0	Appelez-nous	-
10	912771		Manual, Use & Care	A0	Appelez-nous	-
