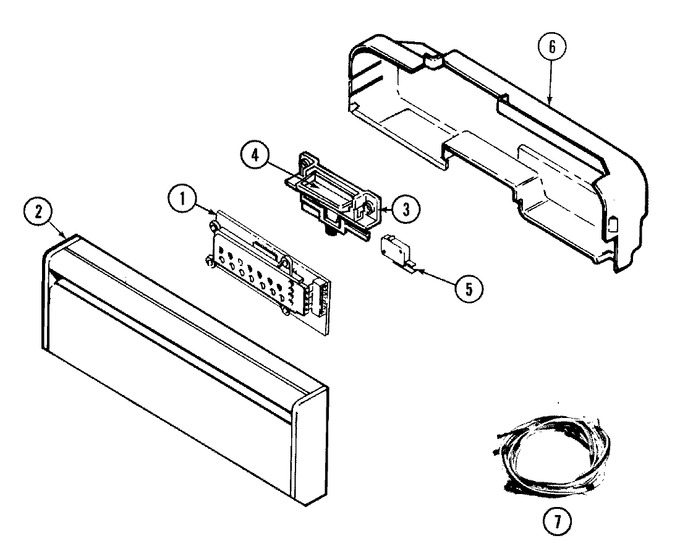

SELECT A DIAGRAM

01 - Blower


02 - Control Panel


03 - Door


04 - Pump & Motor


05 - Racks


06 - Rinse Aid & Soap Dispenser


07 - Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001002		Pcb & Mounting Plate Assy.	A0	Appelez-nous	-
1	Y913181		Shield, Pcb (plastic Film)	A0	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
2	99001247		Panel, Control (blk)	A0	Appelez-nous	-
2	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
3	99002254		Holder, Door Switch   (Replaces: 99001077)	A0			$ 116.79
3	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
4	99001097		Cover, Handle Hole	A0	Appelez-nous	-
4	99001096		Seal, Handle Hole	A0	Appelez-nous	-
4	99001080		Handle, Latch (blk)	A0	Appelez-nous	-
5	99002254		Switch, Door   (Replaces: 903086)	A0			$ 116.79
6	Y912667		Barrier, Control Panel	A0	Appelez-nous	-
7	99001041		Wire Harness, Main	A0	Appelez-nous	-
7	Y913176		Clip, Wire Harness	A0	Appelez-nous	-
8	913028		Manual, Use & Care (frch)	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
