02 - Backguard

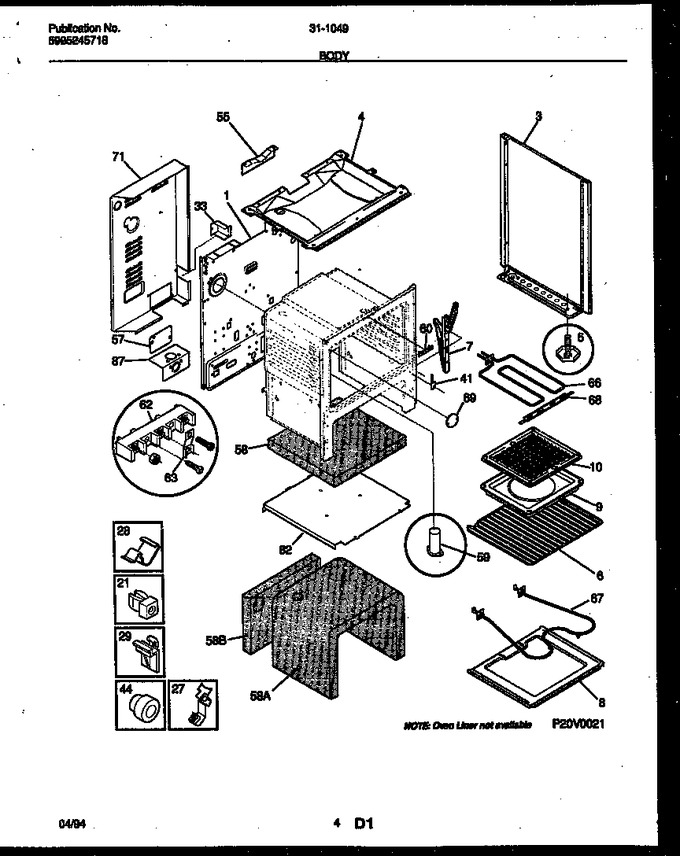

03 - Body Parts
04 - Cooktop And Drawer Parts
05 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203082 | Back-main |
|
- | |||||
| 3 | 5303269518 | Panel-bodyside, White, Rh |
|
- | |||||
| 4 | 5303271756 | Burner Box |
|
- | |||||
| 5 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 6 | 5303281625 | Rack Oven |
|
- | |||||
| 7 | 316007001 | Hinge,oven Door ,(2) |
|
$ 234.55 | |||||
| 8 | 3203540 | Panel-oven Bottom |
|
- | |||||
| 9 | 5303013568 | Pan-broiler |
|
- | |||||
| 10 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 27 | 5303011805 | Clip, Thermo Bulb |
|
- | |||||
| 28 | 3051367 | Clip-wire |
|
- | |||||
| 33 | 3203582 | Shield-rear Wall |
|
- | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 55 | 3051368 | Shield-flue Cover |
|
- | |||||
| 57 | 3203405 | Cover-access |
|
- | |||||
| 58 | 3200847 | Insulation, Oven Bottom |
|
- | |||||
| 59 | 5303283907 | Tube-oven Vent |
|
- | |||||
| 60 | 5303015372 | Cover-oven Front |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 63 | 5303212739 | Plate-ground Strap |
|
- | |||||
| 66 | 5303051140 | Element-broil |
|
$ 202.71 | |||||
| 67 | 316075103 | Element-bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 68 | 3051373 | Support-element |
|
- | |||||
| 69 | 3051218 | Plate,oven Light |
|
- | |||||
| 71 | 3203549 | Shield-rear Wall, Lower |
|
- | |||||
| 82 | 3200825 | Shield, Oven Bottom |
|
- | |||||
| 87 | 5303206618 | Bracket-cable Mtg |
|
- | |||||
| *10136 | 3203550 | Plug-button |
|
Immediately | $ 15.22 | ||||
| *10136 | 3051387 | Cover-rear Wall |
|
- | |||||
| *10136 | 08067961 | Fastener-power Cord |
|
- | |||||
| 3A | 5303269519 | Panel-bodyside, White, Lh (non-illustrated) |
|
- | |||||
| 58A | 3017142 | Insulation, Oven Wrapper |
|
$ 193.50 | |||||
| 58B | 3203541 | Insulation, Oven Back |
|
- | |||||
| 5A | 3934056 | Anti-tip Kit (non-illustrated) |
|
- | |||||
| 5B | 5303288460 | Nut, T-type, Leveling Screw (non-illustrated) |
|
$ 27.14 | |||||
| 62A | 5303051099 | Nut, Hex, 10-32 (non-illustrated) |
|
- |
