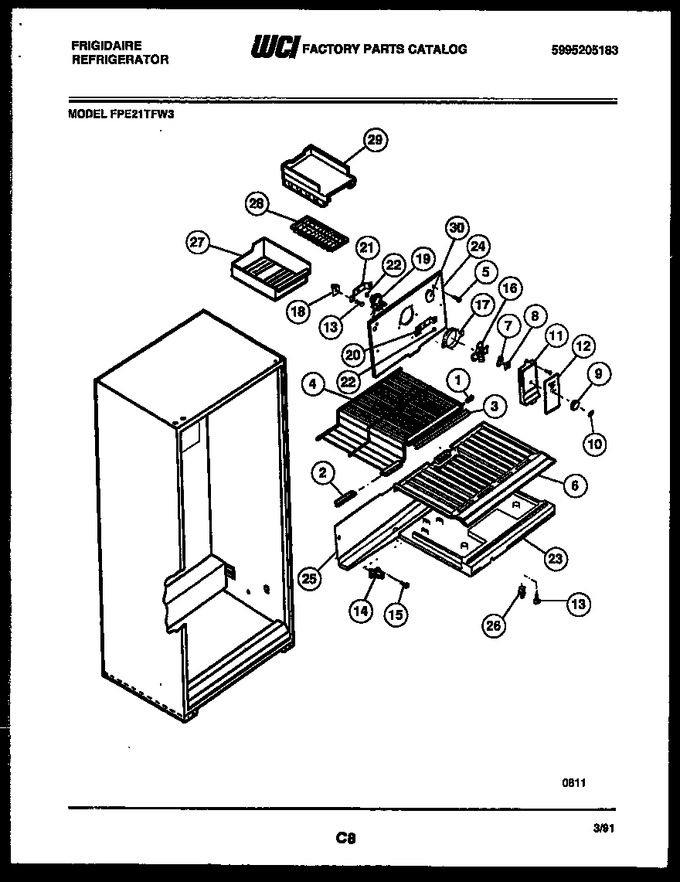

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201150 | Cap Protector (2) |
|
$ 4.57 | |||||
| 2 | 3017427 | Trim |
|
- | |||||
| 3 | 3017428 | Trim |
|
- | |||||
| 4 | 3019033 | Shelf |
|
- | |||||
| 5 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 6 | 5303210641 | Bottom, Freezer |
|
- | |||||
| 7 | 5303001331 | Damper |
|
$ 31.71 | |||||
| 8 | 5303001028 | Nut, Push |
|
- | |||||
| 9 | 5308009793 | Knob, Damper |
|
- | |||||
| 10 | 08009823 | Label, Damper |
|
- | |||||
| 11 | 08009825 | Cover, Fan |
|
- | |||||
| 12 | 08009937 | Label, Fan Cover |
|
- | |||||
| 13 | 5303001380 | Screw |
|
- | |||||
| 14 | 5308000056 | Spout Drain |
|
$ 11.66 | |||||
| 15 | 5303001361 | Pin, Push, (2) |
|
- | |||||
| 16 | 5308000010 | Fan |
|
Immediately | $ 49.03 | ||||
| 17 | 5308000124 | Ring, Orifice |
|
$ 53.58 | |||||
| 18 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 19 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 20 | 5303205118 | Bracket - Front |
|
- | |||||
| 21 | 5303205119 | Bracket, Rear |
|
- | |||||
| 22 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 23 | 5303019039 | Divider, Styrofoam |
|
- | |||||
| 24 | 5308013665 | Cover, Coil |
|
- | |||||
| 25 | 5303001470 | Trough-drain |
|
- | |||||
| 26 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 27 | 5303212895 | Ice Container |
|
- | |||||
| 28 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 29 | 08009824 | Ice Tray Compartment |
|
- | |||||
| 30 | 5303208309 | Button Plug |
|
$ 45.50 | |||||
| *42507 | 5308010253 | Screw-ice Tray Mtg |
|
- | |||||
| *42507 | 08012329 | Label-ice Maker |
|
- | |||||
| 11A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 18A | 5303210353 | Screw-brkt Connector (non-illustrated) |
|
- | |||||
| 20A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 24A | 5303209814 | Nut U, Type (2) (non-illustrated) |
|
- | |||||
| 24B | 5308013636 | Plug-decorative (non-illustrated) |
|
- | |||||
| 6A | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 |
