SELECT A DIAGRAM
02 - Body Parts
03 - Backguard
04 - Door Parts
05 - Cooktop And Broiler Parts
New Model Search:

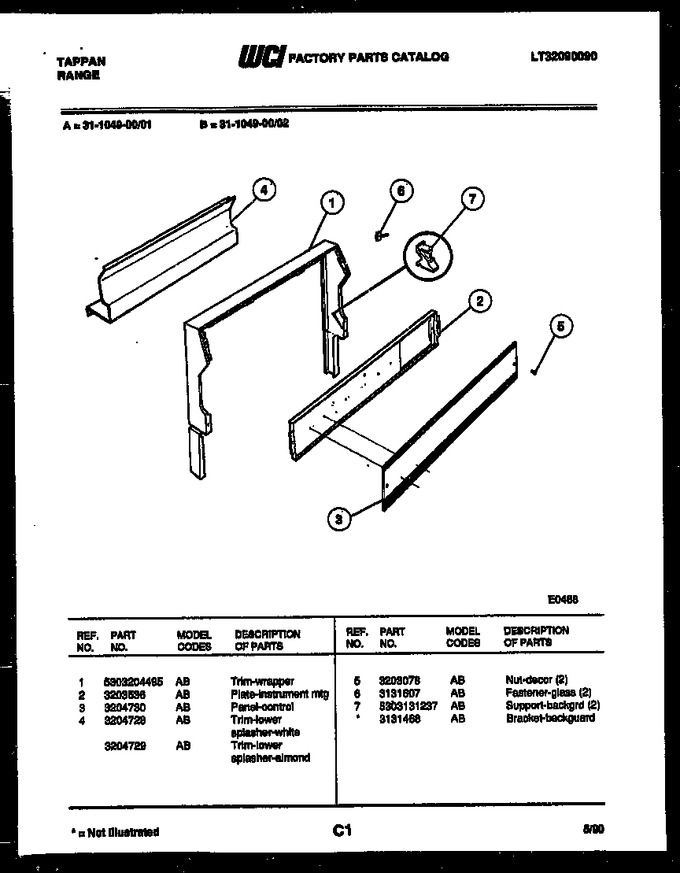

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303204495 | Trim-wrapper |
|
- | |||||
| 2 | 3203536 | Plate-instrument Mtg |
|
- | |||||
| 3 | 3204730 | Panel-control |
|
- | |||||
| 4 | 3204729 | Trim-lower Splasher-almond |
|
- | |||||
| 5 | 3203078 | Nut-decor (2) |
|
- | |||||
| 6 | 3131607 | Fastener, Glass (2) |
|
- | |||||
| 7 | 5303131237 | Support-backgrd (2) |
|
- | |||||
| *26344 | 3131468 | Bracket, Backguard |
|
- |
