SELECT A DIAGRAM

Diagram for 01 - Blower, Float & Water Level Switch
01 - Blower, Float & Water Level Switch

Diagram for 02 - Control Panel
02 - Control Panel

Diagram for 03 - Door
03 - Door

Diagram for 04 - Pump & Motor
04 - Pump & Motor

Diagram for 05 - Pump & Motor (series 34)
05 - Pump & Motor (series 34)

Diagram for 06 - Rinse Aid & Soap Dispenser
06 - Rinse Aid & Soap Dispenser

Diagram for 07 - Track & Rack Assembly
07 - Track & Rack Assembly

Diagram for 08 - Tub
08 - Tub

Diagram for 09 - Wiring Information
09 - Wiring Information

Diagram for 10 - Wiring Information
10 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
NI 15001805 Wiring Information 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

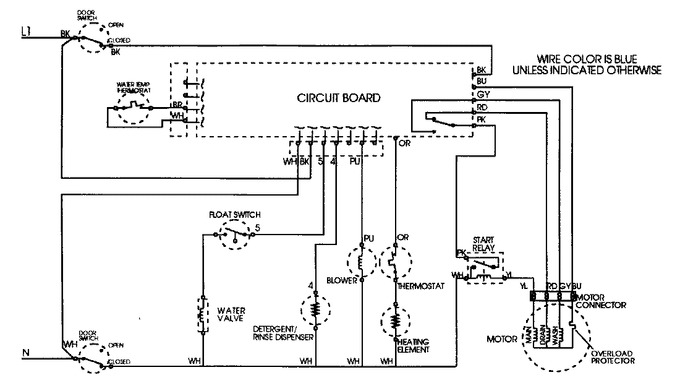

Diagram for DWU9922AAB
