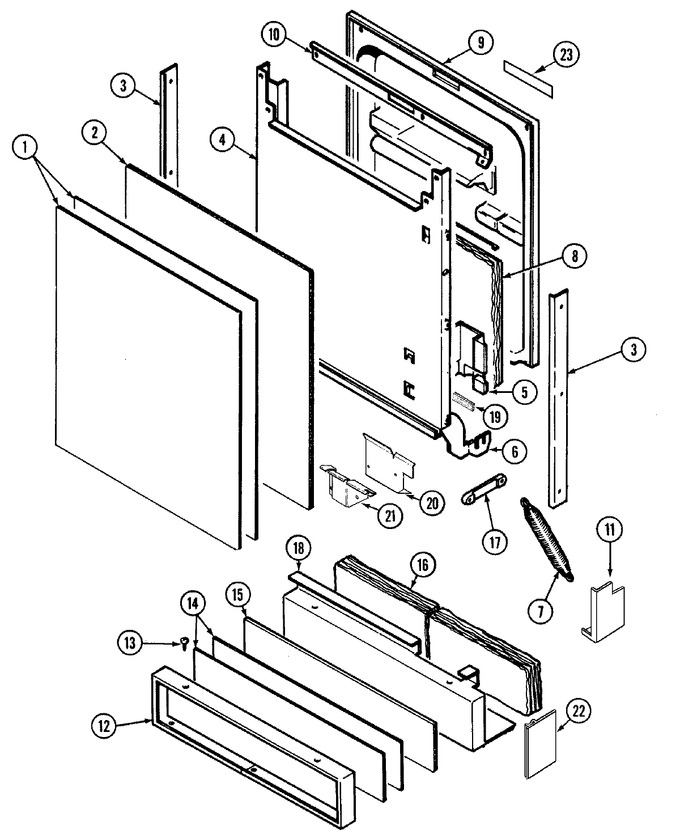

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 912520 | Insert, Front Panel (wht/blk) | A0 |
|
$ 48.54 | ||||
| 1 | 912519 | Insert, Front Panel (al/wheat) | A0 |
|
- | ||||
| 2 | 912521 | Filler, Front Panel | A0 |
|
- | ||||
| 3 | 99001102 | Trim, Door (blk) | A0 |
|
- | ||||
| 3 | Y913157 | Screw | A0 |
|
- | ||||
| 4 | 99001110 | Trim, Panel (lwr-blk) | A0 |
|
- | ||||
| 4 | 903821 | Door, Outer | A0 |
|
- | ||||
| 4 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A0 |
|
Immediately | $ 6.90 | |||
| 4 | 912024 | Rivet | A0 |
|
- | ||||
| 4 | 99001196 | Seal, Door Gap | A0 |
|
- | ||||
| 5 | Y912666 | Retainer, Wire | A0 |
|
- | ||||
| 5 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A0 |
|
Immediately | $ 6.90 | |||
| 5 | 912883 | Retainer, Wire | A0 |
|
- | ||||
| 6 | 903071 | Hinge (rt) | A0 |
|
- | ||||
| 6 | 903070 | Hinge (lt) | A0 |
|
- | ||||
| 6 | 99001075 | Screw | A0 |
|
$ 5.81 | ||||
| 7 | WP912652 | Spring, Door (Replaces: 912652) | A0 |
|
Immediately | $ 9.00 | |||
| 8 | Y912751 | Damper, Sound (btm) | A0 |
|
- | ||||
| 8 | 99001215 | Damper, Sound (top) | A0 |
|
- | ||||
| 8 | 99001103 | Insulation, Door | A0 |
|
- | ||||
| 9 | 99001212 | Back, Vent | A0 |
|
- | ||||
| 9 | Y912620 | Screw | A0 |
|
$ 5.48 | ||||
| 9 | 99001104 | Seal, Vent | A0 |
|
- | ||||
| 9 | 99001067 | Door, Inner (w/damper) | A0 |
|
- | ||||
| 10 | Y912668 | Bar, Reinforcement | A0 |
|
- | ||||
| 11 | WP4312464 | Screw (Replaces: 912197) | A0 |
|
$ 6.26 | ||||
| 11 | Y912809 | Shield, Access Panel (rt) | A0 |
|
- | ||||
| 11 | Y912810 | Shield, Access Panel (lt) | A0 |
|
- | ||||
| 12 | 99001211 | Trim, Access Panel (blk) | A0 |
|
- | ||||
| 13 | Y913163 | Screw | A0 |
|
- | ||||
| 13 | WP489128 | Screw (Replaces: 912365) | A0 |
|
$ 9.79 | ||||
| 14 | 912527 | Insert, Access Panel (wht/blk) | A0 |
|
- | ||||
| 14 | 912528 | Insert, Access Panel(alm/hwht) | A0 |
|
- | ||||
| 15 | 912525 | Filler, Access Panel | A0 |
|
- | ||||
| 16 | 99001195 | Insulation, Access Panel | A0 |
|
- | ||||
| 17 | WP912653 | Link, Door Spring (Replaces: 912653) | A0 |
|
Immediately | $ 7.45 | |||
| 18 | 99001205 | Seal, Access Panel | A0 |
|
- | ||||
| 18 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 18 | 912636 | Panel, Access (blk) | A0 |
|
- | ||||
| 19 | 99001111 | Seal, Foam | A0 |
|
- | ||||
| 20 | 912641 | Shield, Tub (blk) | A0 |
|
- | ||||
| 20 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 21 | 912642 | Cover, Wire (blk) | A0 |
|
- | ||||
| 21 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 22 | 99001206 | Barrier (blk) | A0 |
|
- | ||||
| 23 | 99001218 | Label, Top Of Door | A0 |
|
- |
