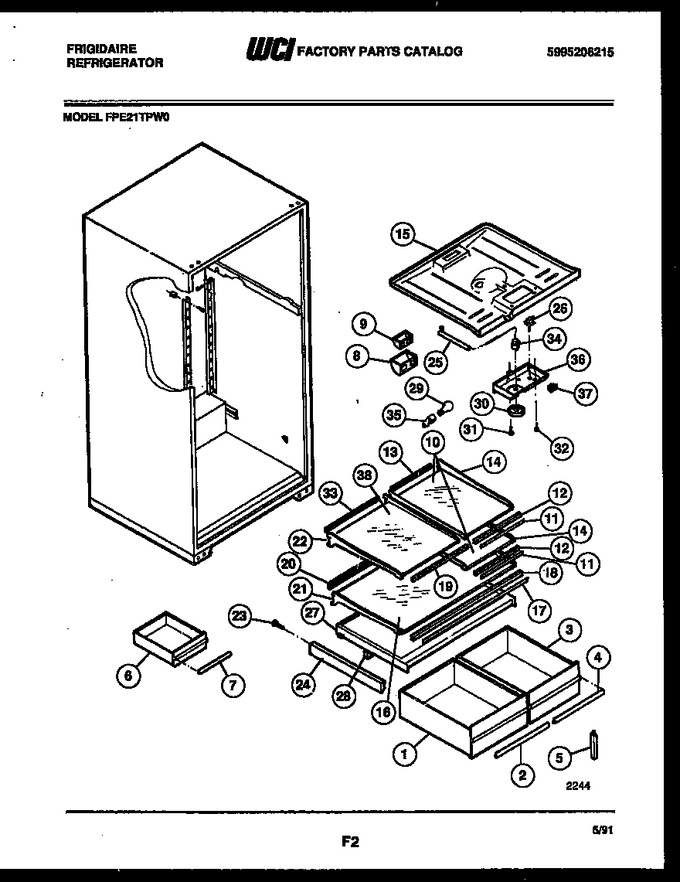

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018873 | Pan-storage Lh |
|
- | |||||
| 2 | 5303272523 | Trim-pan Lh |
|
- | |||||
| 3 | 3018982 | Pan-storage Rh |
|
- | |||||
| 4 | 5303272529 | Trim-pan Rh |
|
- | |||||
| 5 | 5303206507 | Support, Cover |
|
- | |||||
| 6 | 3018987 | Pan, Meat |
|
- | |||||
| 7 | 5303272530 | Trim, Meat Pan |
|
- | |||||
| 8 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 9 | 5308014667 | Air Deflector & Seal |
|
- | |||||
| 10 | 5303211959 | Glass, Shelf (2) |
|
- | |||||
| 11 | 5303272797 | Trim-shelf (2) |
|
- | |||||
| 12 | 5303209263 | Retainer (2) |
|
- | |||||
| 13 | 5303211830 | Retainer Trim-rear (2) |
|
- | |||||
| 14 | 5303209266 | Frame, 1/2 Shelf (2) |
|
- | |||||
| 15 | 3019038 | Top, Refrigerator |
|
- | |||||
| 16 | 5303272821 | Glass-shelf |
|
- | |||||
| 17 | 5303272820 | Trim |
|
- | |||||
| 18 | 5303209274 | Retainer |
|
- | |||||
| 19 | 5303209263 | Retainer-meat Shelf |
|
- | |||||
| 20 | 5303210045 | Retainer-rear |
|
- | |||||
| 21 | 5303209276 | Frame-full Shelf |
|
- | |||||
| 22 | 5303209270 | Frame, Meat Shelf |
|
- | |||||
| 23 | 08014528 | Screw (6) |
|
$ 4.31 | |||||
| 24 | 5303210016 | Hanger Lh |
|
$ 134.09 | |||||
| 25 | 3018891 | Housing, Cap Tube |
|
- | |||||
| 26 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 27 | 5303200329 | Gasket, Cover |
|
- | |||||
| 28 | 5303019035 | Cover, Crisper |
|
- | |||||
| 29 | 5303001179 | Bulb, Light |
|
- | |||||
| 30 | 3018893 | Knob, Cold Control |
|
- | |||||
| 31 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 32 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 33 | 5303211828 | Retainer-rear |
|
- | |||||
| 34 | 5303018894 | Control, Cold |
|
- | |||||
| 35 | 218906802 | Socket, Light (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 36 | 3018895 | Box, Control |
|
- | |||||
| 37 | 5303018896 | Switch, Rocker |
|
- | |||||
| 38 | 5303211967 | Glass, Meat Shelf |
|
- | |||||
| 15A | 5303001380 | Screw |
|
- | |||||
| 19A | 5303272543 | Trim-meat Shelf (non-illustrated) |
|
- | |||||
| 24A | 5303210017 | Hanger Rh (non-illustrated) |
|
$ 107.89 | |||||
| 28A | 5303200580 | Control - Humidity (non-illustrated) |
|
- | |||||
| 28B | 3200579 | Trim-crisper Cover (non-illustrated) |
|
- | |||||
| 28C | 5303211968 | Glass-crisper Cover (non-illustrated) |
|
- | |||||
| 9A | 5303200590 | Extension & Insulation (non-illustrated) |
|
- |
