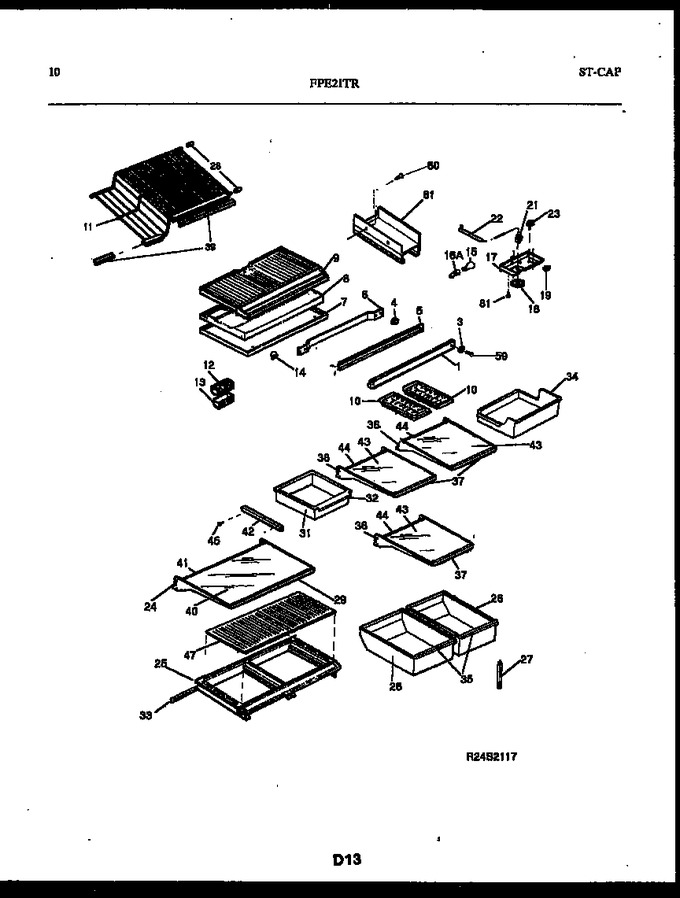

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200370		Mullion, Almond		Appelez-nous	-
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer, Mullion Mtg, (2)		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	3019038		Top Panel-refr		Appelez-nous	-
8	5303019039		Divider, Styrofoam		Appelez-nous	-
9	5303210641		Bottom Panel-frzr		Appelez-nous	-
10	01121808		Ice Tray, Plastic		Appelez-nous	-
11	3019033		Shelf-freezer, Stepped		Appelez-nous	-
12	5308014667		Deflector, Air		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch, Light			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
17	5303275835		Box-control		Appelez-nous	-
18	5303275840		Knob-temp Control		Appelez-nous	-
19	5303207249		Switch-energy Saver		Appelez-nous	-
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 5303275811)			Immediately	$ 28.20
24	5303209276		Frame, Full Shelf, Cantilever		Appelez-nous	-
25	5303206538		Cover-crisper Pan		Appelez-nous	-
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension, Air Deflector, With Insulation (non-illustrated)		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
25A	5303275621		Control-humidity (non-illustrated)		Appelez-nous	-
7A	5303001380		Screw		Appelez-nous	-
8A	3205266		Protector-edge (non-illustrated)				$ 80.09
8B	3019040		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-
