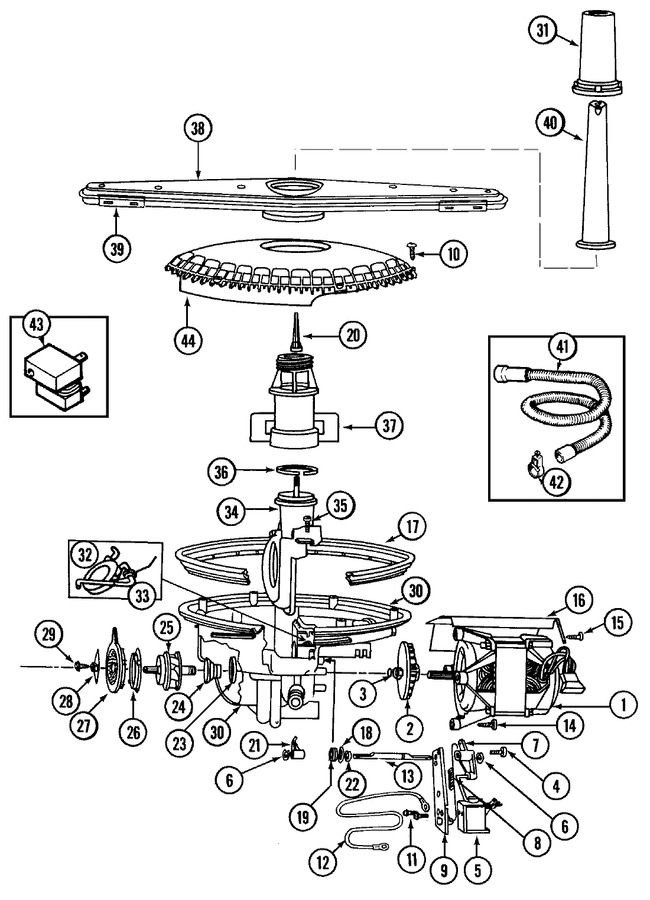

03 - Pump & Motor


04 - Soap Dispenser


05 - Track & Rack Assembly


06 - Tub


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10339879		Strap, Cable   (Replaces: 912266)	28			$ 7.11
1	99001070		Motor (w/o-ring & Fan)	28	Appelez-nous	-
2	99001145		Spring, Motor Fan	28	Appelez-nous	-
2	Y912903		Fan, Motor	28	Appelez-nous	-
3	Y913174		``o`` Ring, Motor	28	Appelez-nous	-
3	Y913173		Retainer, Impeller	28	Appelez-nous	-
4	Y912892		Screw, Motor	28	Appelez-nous	-
5	WP6-904023		Solenoid, Pull   (Replaces: 904023)	28			$ 164.69
6	Y913109		``e`` Clip, ``d`` Shaft	28			$ 5.96
7	913099		Crank, ``d`` Shaft	28	Appelez-nous	-
8	Y913201		Spring, Return	28			$ 5.83
9	Y913203		Bracket, Solenoid	28	Appelez-nous	-
10	912622		Screw	28	Appelez-nous	-
11	WP179051		Screw, Hinge----na   (Replaces: 912623)	28		Immediately	$ 7.16
12	903882		Wire, Ground	28	Appelez-nous	-
13	913105		``d`` Shaft	28	Appelez-nous	-
14	Y912892		Screw, Motor	28	Appelez-nous	-
15	WP179051		Screw, Hinge----na   (Replaces: 912623)	28		Immediately	$ 7.16
16	Y912931		Shield, Motor	28	Appelez-nous	-
17	912529		Gasket, Pump	28			$ 35.78
18	913106		Washer, Shaft Seal	28	Appelez-nous	-
19	WP913108		Seal, Shaft   (Replaces: 913108)	28			$ 8.77
20	Y912930		Nut, Spray Arm Support	28			$ 5.70
21	Y913200		Lifter	28			$ 7.82
22	913110		``e`` Clip, ``d`` Shaft	28	Appelez-nous	-
23	903494		Seat, Seal	28	Appelez-nous	-
24	903493		Seal Head Assy.	28	Appelez-nous	-
25	903962		Impeller, Pump	28	Appelez-nous	-
26	Y912901		Ring, Wear	28	Appelez-nous	-
27	Y912913		Plate, Chopper	28	Appelez-nous	-
28	Y913274		Chopper	28	Appelez-nous	-
29	913275		Screw, Chopper	28	Appelez-nous	-
30	Y912902		Housing, Pump	28	Appelez-nous	-
31	Y912899		Nozzle, Center Spray	28			$ 35.23
32	Y912924		Flapper, Drain	28	Appelez-nous	-
33	Y913202		Spring, Flapper	28	Appelez-nous	-
34	Y912915		Volute, Pump (w/shaft)	28	Appelez-nous	-
35	Y912891		Screw, Pump Volute	28	Appelez-nous	-
36	Y912904		Seal, Ring	28	Appelez-nous	-
37	WPY912900		Support, Spray Arm   (Replaces: Y912900)	28			$ 92.52
38	903489		Arm, Wash (lwr)	28	Appelez-nous	-
39	Y912895		Shield, Radiant	28	Appelez-nous	-
40	WPY912912		Nozzle, ``jump-up``   (Replaces: Y912912)	28			$ 67.48
41	WPY913158		Hose, Drain   (Replaces: Y913158)	28		Immediately	$ 33.65
42	WP616099		Clamp, Hose (1 1/4``)   (Replaces: 904030)	28		Immediately	$ 7.03
43	912612		Screw, Relay	28	Appelez-nous	-
43	903482		Relay, Motor	28	Appelez-nous	-
43	Y913156		Bracket, Relay	28	Appelez-nous	-
44	Y912917		Strainer	28	Appelez-nous	-
