01 - Control Panel


02 - Door


03 - Pump & Motor


04 - Racks


05 - Rinse Aid & Dispenser


06 - Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

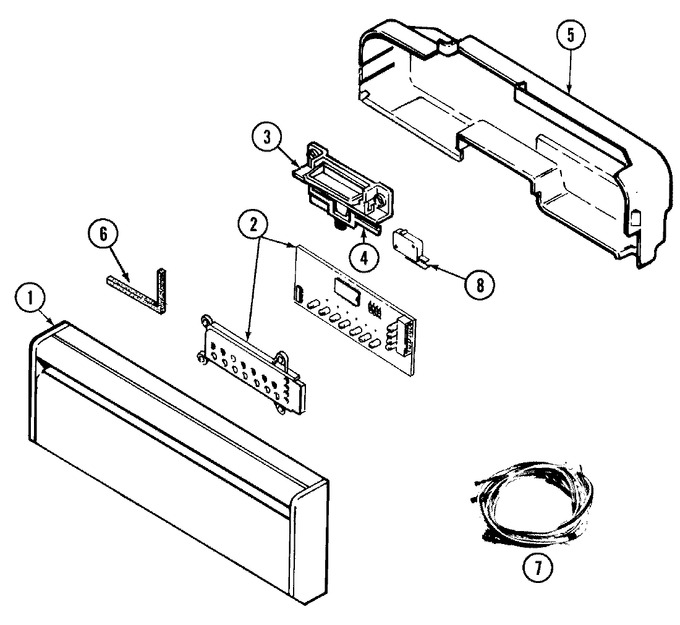

1	99001299		Panel Assy., Control	A0	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
1	99001386		Panel, Control (blk)	28	Appelez-nous	-
2	903924		Pcb & Mtg. Plate Assy.	A0	Appelez-nous	-
2	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
2	913179		Shield, Control	A0	Appelez-nous	-
3	Y912939		Handle, Latch	A0	Appelez-nous	-
3	12001117		Kit, Latch Handle (blk)	A9	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
4	Y912664		Holder, Door Switch	A0			$ 38.66
5	Y912937		Barrier, Control Panel	A0	Appelez-nous	-
6	Y913177		Seal, Vent Outlet	A0	Appelez-nous	-
6	Y913116		Liner, Vent	A0	Appelez-nous	-
7	315471		Retainer, Wire	A6	Appelez-nous	-
7	99001054		Wire Harness, Main	A6	Appelez-nous	-
7	99001175		Wire Harness, Main	B6	Appelez-nous	-
7	903547		Wire Harness	A0	Appelez-nous	-
8	99002254		Switch, Door   (Replaces: 903086)	A0			$ 116.79
9	Y913186		Manual, Use & Care	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
