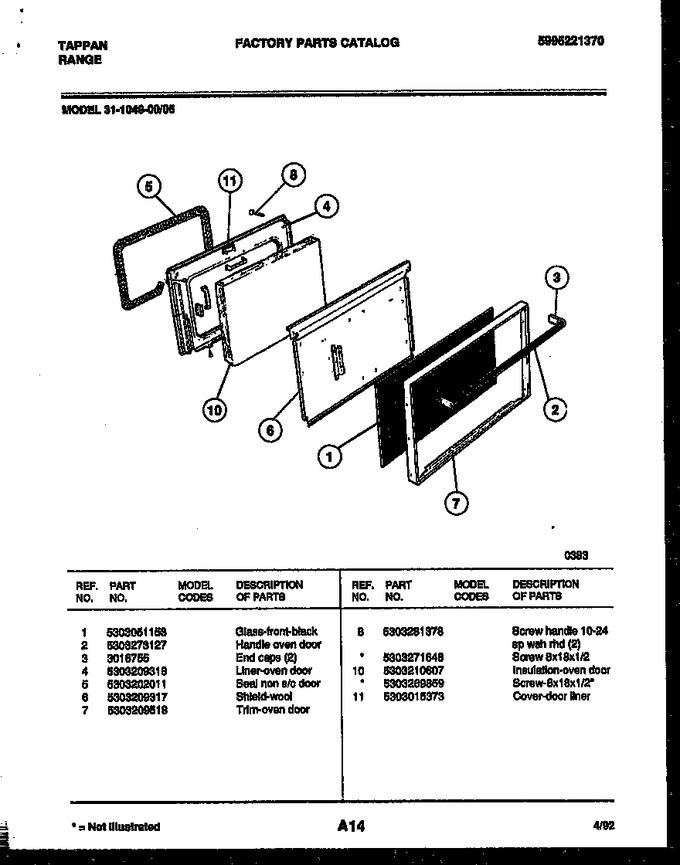

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303051153 Glass-front-black Appelez-nous -
2 5303273127 Handle-oven Door Appelez-nous -
3 3016755 End Caps (2) Appelez-nous -
4 5303209318 Liner-oven Door Appelez-nous -
5 5303202011 Seal - Non S/c Door Special Order $ 166.84

6 5303209317 Shield-wool Appelez-nous -
7 5303209518 Trim-oven Door Appelez-nous -
8 5303281378 Screw-handle 10-24 Sp Wsh Rhd (2) Special Order $ 13.60

10 5303210607 Insulation, Oven Door Appelez-nous -
11 5303015373 Cover-door Liner Appelez-nous -
10A 5303269859 Screw-8 X 18 X 1/2`` (non-illustrated) Appelez-nous -
8A 5303271648 Screw 8 X 18 X 1/2 (non-illustrated) In-Stock Immediately $ 13.46


    View Diagram in Separate Window     Print Icon   Print Part List
