01 - Back Panel & Components
02 - Cavity Assy
03 - Control Panel Assy
04 - Door Assy

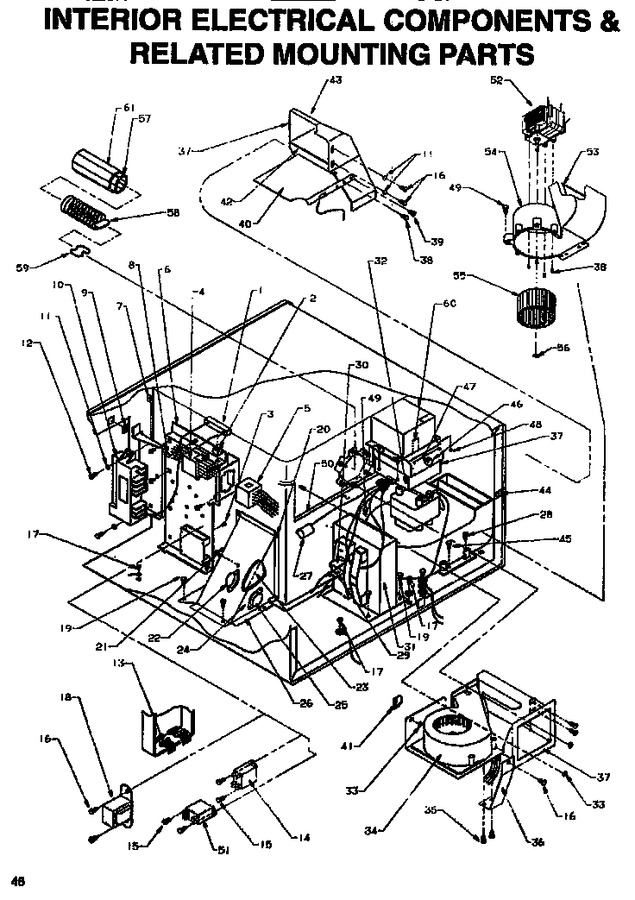

05 - Interior Electrical Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31860P01 | Resistor |
|
- | |||||
| 2 | 5014-MM | Speed Clip |
|
- | |||||
| 3 | Y00000000 | See Note Screw |
|
- | |||||
| 4 | 4520200190 | Component Harness U2800st |
|
- | |||||
| 5 | 4520200180 | Oven Harness U2800st.a |
|
- | |||||
| 6 | 46639P01 | Panel, Component |
|
- | |||||
| 7 | 42365P01 | U-clip |
|
- | |||||
| 8 | Y00000000 | See Note Nut-keps |
|
- | |||||
| 9 | 5072-D | No.8-32 Captive Nut(25) |
|
- | |||||
| 10 | 4002006801 | Svc Interlock Switch Asy |
|
- | |||||
| 11 | Y00000000 | See Note Washer-flat |
|
- | |||||
| 12 | 5015-X | Screw, Sm |
|
- | |||||
| 13 | 4520200140 | Component Harness |
|
- | |||||
| 14 | 38806P06 | Relayx |
|
- | |||||
| 15 | 5074-DD | Screw K |
|
- | |||||
| 16 | 5027-ZZ | Screw |
|
- | |||||
| 17 | 5078-CC | Screw |
|
- | |||||
| 18 | M60D149 | Lv Transformer Kit |
|
- | |||||
| 19 | 5021032501 | Screw |
|
- | |||||
| 20 | 46633P01 | Tape, Silicone (roll) |
|
- | |||||
| 21 | 5019-AA | Pop Rivet K |
|
- | |||||
| 22 | M4D121 | Thermostat O.t. |
|
- | |||||
| 23 | 46816P01 | Insert, Exh Dust |
|
- | |||||
| 24 | 46815P01 | Gasket-thermo |
|
- | |||||
| 25 | M4D122 | Exh Therm Switch |
|
- | |||||
| 26 | M65D360 | Exhaust Duct |
|
- | |||||
| 27 | 5041-UU | Tubing |
|
- | |||||
| 28 | 5067-A | .187 Dia Pop Rivet Steel |
|
- | |||||
| 29 | 4520500403 | Sensor, Temp |
|
- | |||||
| 30 | 6160000003 | Nomex Paper |
|
- | |||||
| 31 | 46364P01 | Kit,transformer |
|
- | |||||
| 32 | M57D37 | Kit, Magnetron |
|
- | |||||
| 33 | 5010-LL | Nut K |
|
- | |||||
| 34 | M41D34 | Heater Blwr Assy |
|
- | |||||
| 35 | 5067-P | Rivet, Pop |
|
- | |||||
| 36 | 46621P01 | Support-blr Hsg |
|
- | |||||
| 37 | 5031-SS | Gasket (1=1ft.) |
|
- | |||||
| 38 | 5072-V | Screw K |
|
- | |||||
| 39 | 42192P01 | Rivet-plastcx |
|
- | |||||
| 40 | 46762P01 | Deflector-air M65d344 |
|
- | |||||
| 41 | 39126P01 | Cable Clip |
|
- | |||||
| 42 | 45402P01 | M65d346 Divider Air |
|
- | |||||
| 43 | 45407P01 | M65d345 Duct, Air |
|
- | |||||
| 44 | 5147-ZZ | U-clip |
|
- | |||||
| 45 | 5078-LL | Screw |
|
- | |||||
| 46 | 31866P01 | M4d69 Protector |
|
$ 8.67 | |||||
| 47 | M0251717 | Screw |
|
- | |||||
| 48 | 35691P01 | Ia 5mm Flange Whiz-lk Nut (25) |
|
- | |||||
| 49 | 5042-P | Screw 1`` |
|
- | |||||
| 50 | 6160000002 | Insulation Cavity |
|
- | |||||
| 51 | 45021P01 | Relay |
|
- | |||||
| 52 | 4180030701Q | Blower Assy (50 Hz) |
|
- | |||||
| 53 | M2D776 | Divider, Duct |
|
- | |||||
| 54 | 45559P01 | Housing, Blower |
|
- | |||||
| 55 | 36300P01 | Wheel, Blower M35d39 |
|
- | |||||
| 56 | Y00000000 | See Note E-ring |
|
- | |||||
| 57 | M2D777 | Heater Housing |
|
- | |||||
| 58 | 46624P01 | Heater Element |
|
- | |||||
| 59 | 46618P01 | Spring-heater |
|
- | |||||
| 60 | 90139P01 | Gasket-rf |
|
- | |||||
| 61 | 46614P01 | Shld Heater-asy |
|
- |
