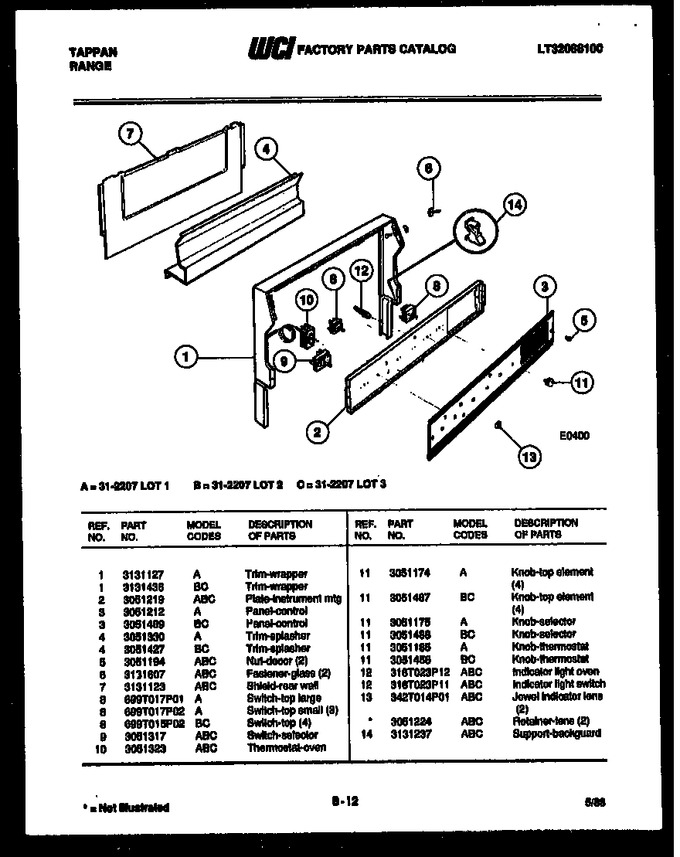

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131436 | Trim Wrapper |
|
- | |||||
| 2 | 3051219 | Plate-instrument Mtg |
|
- | |||||
| 3 | 3051489 | Panel-control |
|
- | |||||
| 4 | 3051427 | Trim-splasher |
|
- | |||||
| 5 | 3051194 | Nut - Decor (2) |
|
- | |||||
| 6 | 3131607 | Fastener, Glass (2) |
|
- | |||||
| 7 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 8 | 699T015P02 | Switch, Top (4) |
|
- | |||||
| 9 | 3051317 | Switch-selector |
|
- | |||||
| 10 | 3051323 | Thermostat-oven |
|
- | |||||
| 11 | 3051487 | Knob, Top Element (4) |
|
- | |||||
| 11 | 3051488 | Knob-selector |
|
- | |||||
| 11 | 3051456 | Knob, Thermostat |
|
- | |||||
| 12 | 318T023P11 | Indicator Light Switch |
|
- | |||||
| 12 | 318T023P12 | Indicator Light, Oven |
|
- | |||||
| 13 | 342T014P01 | Jewel Indicator Lens (2) |
|
- | |||||
| 14 | 3131237 | Support Backguard |
|
- | |||||
| 13A | 3051224 | Retainer-lens (2) (non-illustrated) |
|
- |
