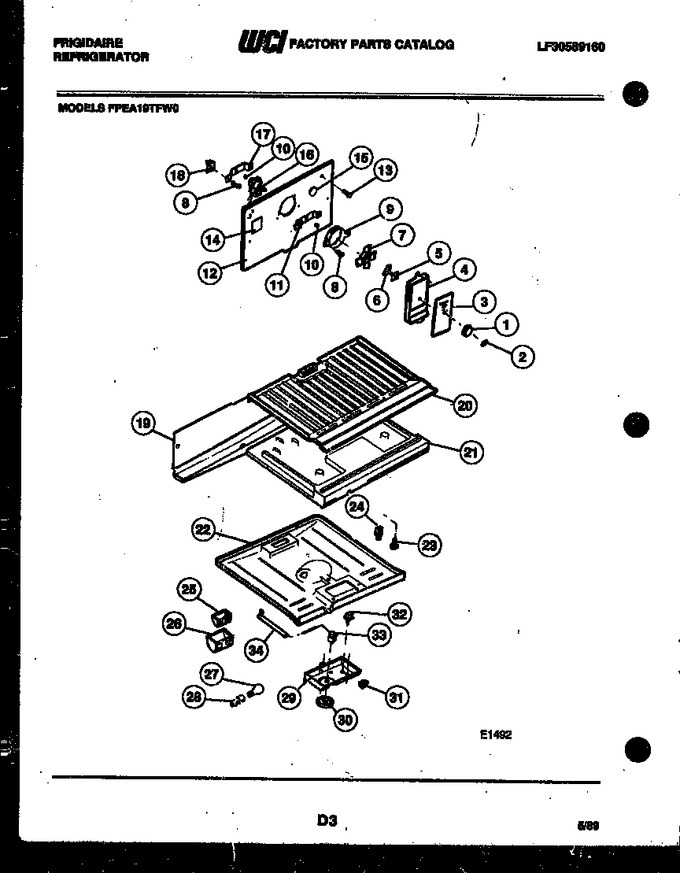

02 - Door Parts
03 - Cabinet Parts
04 - Refrigerator And Damper Control Ass
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08009793 | Knob-damper Control |
|
- | |||||
| 2 | 08009823 | Label, Knob |
|
- | |||||
| 3 | 08009924 | Label, Fan Cover |
|
- | |||||
| 4 | 08009817 | Cover, Fan |
|
- | |||||
| 5 | 08000067 | Push Nut |
|
- | |||||
| 6 | 08000066 | Damper |
|
- | |||||
| 7 | 5308000010 | Fan Blade (Replaces: 08000010) |
|
Immediately | $ 49.03 | ||||
| 8 | 08002748 | Screw |
|
- | |||||
| 9 | 08000124 | Orifice Ring-plastic |
|
- | |||||
| 10 | 08000032 | Bushing-mtr Mtg (2) |
|
- | |||||
| 11 | 08000043 | Bracket-front |
|
- | |||||
| 12 | 08009771 | Cover-evap Coil |
|
- | |||||
| 13 | 08016566 | Screw |
|
- | |||||
| 14 | 08013636 | Plug-decorative |
|
- | |||||
| 15 | 3203044 | Plug-short Test Hole |
|
- | |||||
| 16 | 08004176 | Motor-fan |
|
- | |||||
| 17 | 08000042 | Bracket-rear |
|
- | |||||
| 18 | 08000107 | Connector Bracket |
|
- | |||||
| 19 | 08009772 | Drain Trough |
|
- | |||||
| 20 | 08015543 | Bottom Panel-freezer |
|
- | |||||
| 21 | 3018994 | Divider |
|
- | |||||
| 22 | 3018993 | Top Panel-refr |
|
- | |||||
| 23 | 08000070 | Screw |
|
- | |||||
| 24 | 09918806 | Switch-light |
|
- | |||||
| 25 | 3204206 | Air Deflector |
|
- | |||||
| 26 | 08000055 | Cover-deflector |
|
- | |||||
| 27 | 08002735 | Light Bulb |
|
- | |||||
| 28 | 08000815 | Socket-light Bulb |
|
- | |||||
| 29 | 3018895 | Control Box |
|
- | |||||
| 30 | 3018893 | Knob, Temp Control |
|
- | |||||
| 31 | 3018896 | Switch-energy Saver |
|
- | |||||
| 32 | 3001671 | Timer-defrost |
|
- | |||||
| 33 | 3018894 | Control-temperature |
|
- | |||||
| 34 | 3018891 | Housing-cntrl Cap Tube |
|
- | |||||
| 12A | 08000126 | Nut-u Type (2) (non-illustrated) |
|
- | |||||
| 13A | 08000132 | Clamp-wiring (non-illustrated) |
|
- | |||||
| 20A | 08000185 | Tape, Foam, Adhesive |
|
- | |||||
| 21A | 3018900 | Wiring Harness - Divider (non-illustrated) |
|
- | |||||
| 21B | 3204146 | Edge Protector (2) (non-illustrated) |
|
- | |||||
| 29A | 08016566 | Screw |
|
- | |||||
| 32A | 08000008 | Screw-timer Mtg (2) (non-illustrated) |
|
- | |||||
| 33A | 08000009 | Screw |
|
- | |||||
| 4A | 08016566 | Screw |
|
- |
