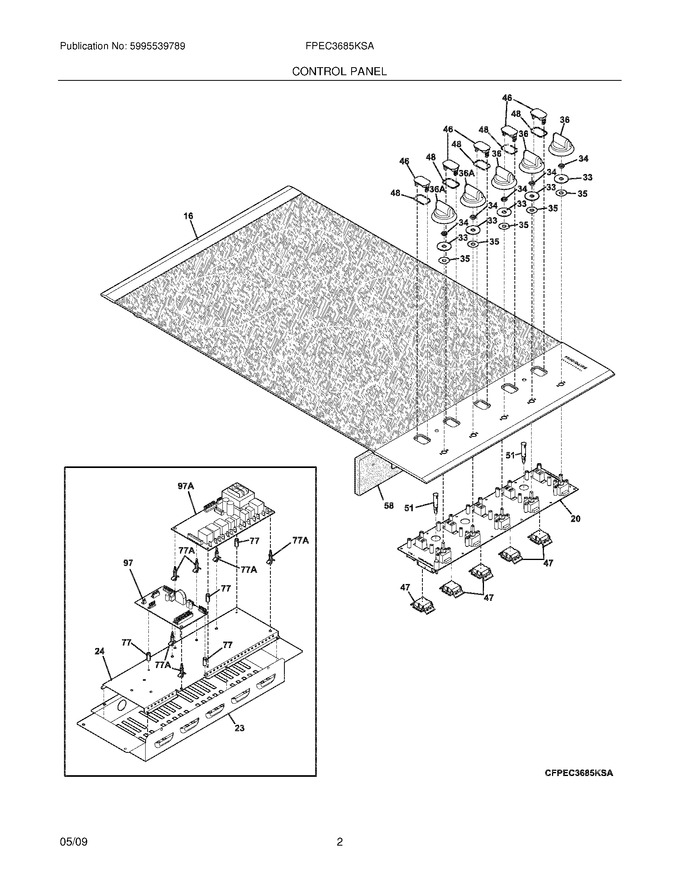

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079230		Main Top Assembly,glass ,black/stainless,w/trim & Frame				$ 713.10
23	318194726		Panel,service		Appelez-nous	-
24	318319205		Deflector,service Panel		Appelez-nous	-
33	318146012		Bushing,control ,(4)				$ 15.60
34	316247700		Nut,mounting				$ 18.20
35	318086007		Washer,flat ,(4) ,control				$ 9.93
36	316564609		Knob,control ,stainless ,single				$ 132.51
46	318319020		Lens,indicator Light ,(6)				$ 31.90
47	318367101		Clamp,lens ,(6)				$ 25.46
48	318337101		Gasket,o`ring ,(6)				$ 4.83
58	318346009		Insulation		Appelez-nous	-
77	318293702		Spacer,control ,(4)				$ 16.22
36A	316564612		Knob,control ,stainless ,dual				$ 61.06
77A	316114100		Spacer				$ 60.96
F20	316543603		Board,user Interface ,rotary ,w/potentiometer				$ 455.60
F51	318337201		Light,indicator ,red ,(2)				$ 55.39
F97	316442066		Board,user Interface ,(uib)				$ 227.08
F97A	316442119		Board,power ,7 Relay			Immediately	$ 366.78
FNI	318402332		Harness,wiring ,pilot Light				$ 40.90
FNI	318402334		Harness,wiring ,interface ,to Relay Board				$ 97.27
FNI	318402330		Harness,wiring ,interface ,to Display				$ 455.77
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
