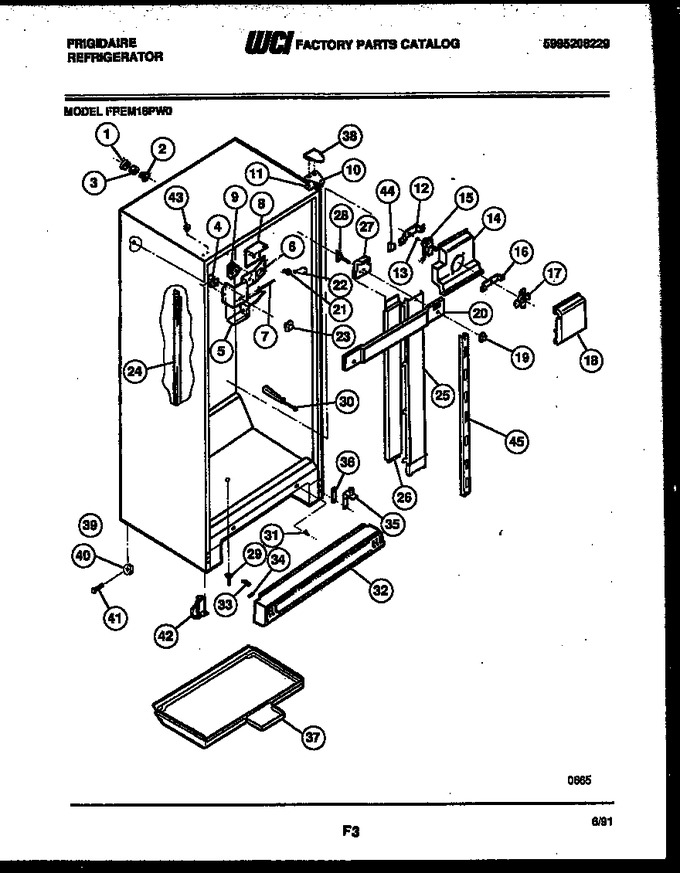

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001286		Ferrule-inner (2)		Appelez-nous	-
2	5303001287		Ferrule-outer (2)		Appelez-nous	-
3	5303001198		Tube-rubber (4)		Appelez-nous	-
4	5308000068		Control, Temperature				$ 166.58
5	5308008706		Cover-control		Appelez-nous	-
6	08008707		Bracket-mounting		Appelez-nous	-
7	5300170287		Housing-tube		Appelez-nous	-
8	5308008709		Deflector-light		Appelez-nous	-
9	5303007400		Timer		Appelez-nous	-
10	5308012843		Hinge-top				$ 71.47
11	5303001037		Shim, Top Hinge				$ 12.39
12	5303205119		Bracket-rear Motor		Appelez-nous	-
13	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
14	08008710		Housing-motor		Appelez-nous	-
15	5300158289		Motor, Fan			Immediately	$ 149.94
16	5303205118		Bracket-front Motor		Appelez-nous	-
17	5308000010		Fan Blade			Immediately	$ 49.03
18	5308008711		Cover-fan		Appelez-nous	-
19	08008712		Knob-damper		Appelez-nous	-
20	08008713		Light Shield		Appelez-nous	-
21	218906802		Light Socket   (Replaces: 5308000815)				$ 17.72
22	5303001179		Light Bulb		Appelez-nous	-
23	5308008716		Knob-temp Control		Appelez-nous	-
24	5308002744		Channel, Rh And Lh		Appelez-nous	-
25	08008718		Air Duct		Appelez-nous	-
26	3015056		Insulation-air Duct		Appelez-nous	-
27	3015057		Insulation-upper Duct		Appelez-nous	-
28	08008721		Damper-air Duct		Appelez-nous	-
29	5300164843		Drain Tube		Appelez-nous	-
30	5317000101		Damper-meat Keeper		Appelez-nous	-
31	5309918810		Light Switch		Appelez-nous	-
32	5303016726		Grille		Appelez-nous	-
33	5308000091		Clip-grille (2)				$ 14.57
34	5300154397		Plug-grille		Appelez-nous	-
35	5303001271		Hinge-bottom				$ 102.38
36	5303001272		Shim-bottom Hinge		Appelez-nous	-
37	5300174360		Pan-defrost		Appelez-nous	-
38	5308012820		Cover - Hinge-white		Appelez-nous	-
39	5303001028		Push Nut (2)		Appelez-nous	-
40	5303001030		Roller, Rear (2)				$ 17.80
41	5308000266		Pin, Roller (2)		Appelez-nous	-
42	5308000118		Roller-front (2)		Appelez-nous	-
43	5303001388		Plug - Hinge - White				$ 2.60
44	5308000107		Bracket-connector				$ 33.23
45	3018720		Channel-center		Appelez-nous	-
*42053	5308012296		Tapping Plate-hinge (2)				$ 47.44
*42053	5308016571		Plug, Freezer Liner (3)				$ 4.79
*42053	5308016568		Screw-mtg (3)		Appelez-nous	-
10A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
10B	5308000007		Washer-top Hinge (non-illustrated)		Appelez-nous	-
12A	5308002748		Screw		Appelez-nous	-
18A	5308010253		Screw-mounting (9) (non-illustrated)		Appelez-nous	-
20A	3018745		Label-freezer Control (non-illustrated)		Appelez-nous	-
20B	3018746		Label-refr Control (non-illustrated)		Appelez-nous	-
24A	5308010253		Screw-mounting (6) (non-illustrated)		Appelez-nous	-
28A	5300171508		Push Nut (non-illustrated)		Appelez-nous	-
30A	5308010253		Screw-mounting (non-illustrated)		Appelez-nous	-
35A	5308000007		Washer-bottom Hinge (non-illustrated)		Appelez-nous	-
35B	5303001041		Screw-mounting (2) (non-illustrated)		Appelez-nous	-
35C	5303001273		Nut-mounting Twin (4) (non-illustrated)		Appelez-nous	-
36A	5308000013		Pin-shoulder (2) (non-illustrated)		Appelez-nous	-
36B	5300077210		Speed Nut J (2) (non-illustrated)		Appelez-nous	-
42A	5308009568		Bolt (2) (non-illustrated)		Appelez-nous	-
44A	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
4A	5300169478		Harness-wiring (non-illustrated)		Appelez-nous	-
4B	5303001260		Screw				$ 6.73
6A	08009649		Insulator-control Box (non-illustrated)		Appelez-nous	-
9A	08003581		Screw-ground (2) (non-illustrated)		Appelez-nous	-
9B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
