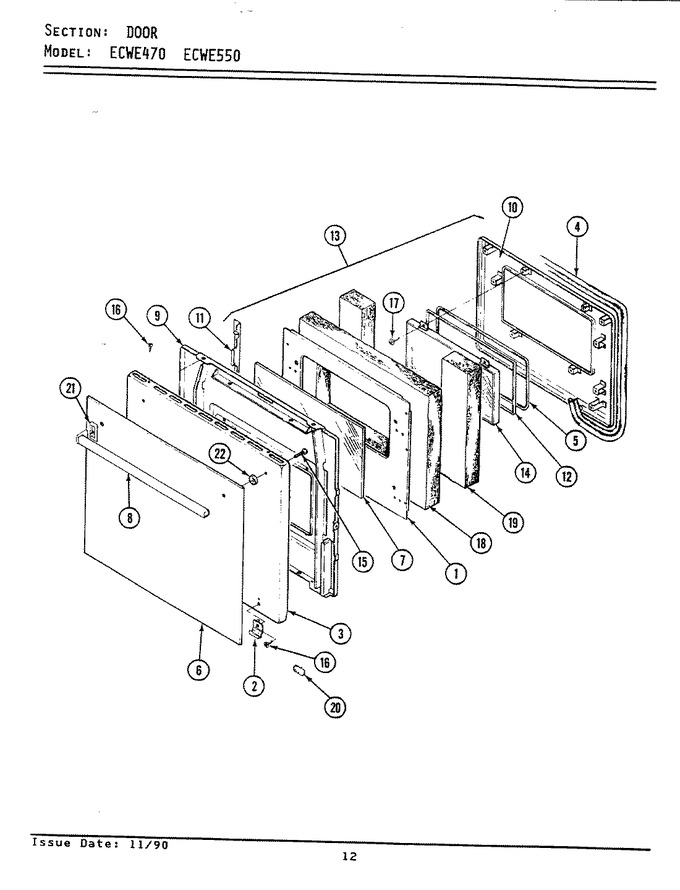

01 - Body (ecwe470)


02 - Control Panel(ecwe470, Ecwe550)


03 - Door (ecwe470)


04 - Oven (ecwe470)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11684512		Screw (10abx1.0-zn)   (Replaces: 7101P060-60)	00			$ 12.69
1	3601W131-51		Baffle, Door Assembly	00	Appelez-nous	-
2	3819F010-71		Clip,glass Retainer (wht)	00	Appelez-nous	-
3	2401F103-71		Panel, Door (wht)	02	Appelez-nous	-
3	2401F045-71		Panel, Oven Door (white)	00	Appelez-nous	-
4	7201P004-60		Gasket	00	Appelez-nous	-
5	7201P020-60		Gasket	00	Appelez-nous	-
6	7902P331-60		Glass, Door Upper	02	Appelez-nous	-
6	7902P318-60		Glass, Outer Door	00	Appelez-nous	-
6	8270P065-60		Tape	00	Appelez-nous	-
7	7902P097-60		Glass, Inner	00			$ 63.87
8	7701P095-60		Handle, Door	00	Appelez-nous	-
9	2402W130-15		Lining Assembly	00	Appelez-nous	-
9	2402W130-19		Lining, Door	03	Appelez-nous	-
10	2410W042-19		Pad, Door	03	Appelez-nous	-
10	2410W038-15		Pad, Oven Door	00	Appelez-nous	-
11	3804F021-45		Retainer, Gasket	00	Appelez-nous	-
12	3804F051-80		Retainer, Glass	00	Appelez-nous	-
13	2410A042-19		Pad, Oven Door Assy.	03	Appelez-nous	-
13	2410A038-15		Pad, Oven Door Assembly	00	Appelez-nous	-
14	5700A082-60		Window Assy.	00			$ 164.77
15	7101P004-60		Screw	00	Appelez-nous	-
16	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	00		Immediately	$ 12.62
17	WP7101P126-60		Screw   (Replaces: 7101P061-60)	00		Immediately	$ 6.85
18	7002P023-60		Insulation, Door----na	00	Appelez-nous	-
19	7002P021-60		Insulation, Door	00	Appelez-nous	-
20	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	00			$ 11.95
21	8010P070-60		Spacer, Handle (white)	00	Appelez-nous	-
22	74003986		Spacer, Glass   (Replaces: 8010P016-60)	00			$ 13.08

    View Diagram in Separate Window       Print Part List
