01 - Body (ecwe550)

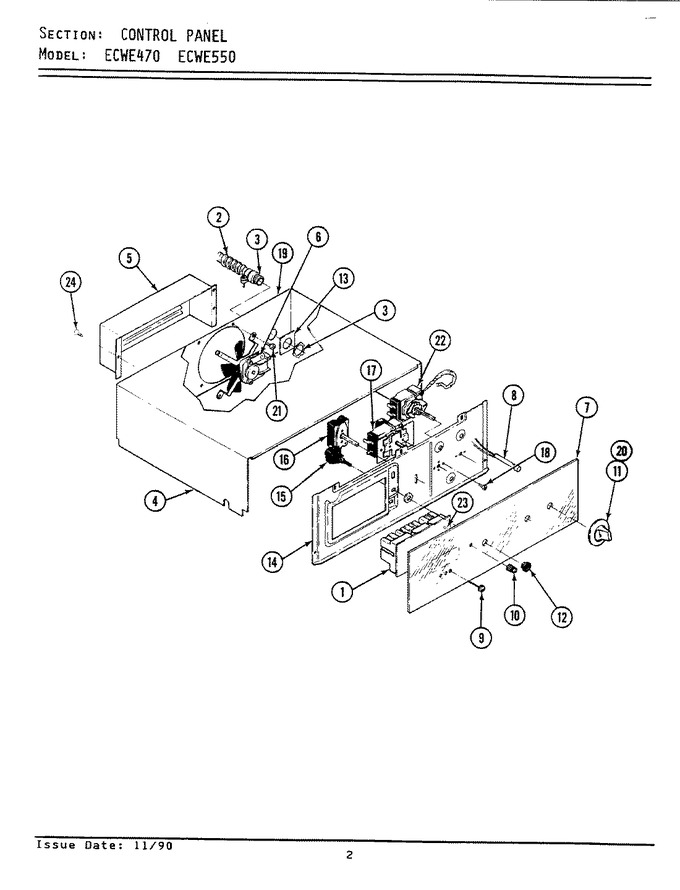

02 - Control Panel(ecwe470, Ecwe550)


03 - Door-lower (ecwe550)


04 - Oven (ecwe550)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7601P123-60		Clock	00	Appelez-nous	-
2	3414P037-44		Conduit, Flexible	00	Appelez-nous	-
3	7417P017-60		Connector, Cable	00			$ 9.81
4	4005F150-51		Cover, Wire	001	Appelez-nous	-
5	4005F262-51		Cover, Fan	00	Appelez-nous	-
6	7427P006-60		Fan Assembly	00	Appelez-nous	-
6	8008P004-60		Grommet	00	Appelez-nous	-
7	7912P068-60		Glass, Control Panel	00	Appelez-nous	-
7	8010P050-60		Felt, Disc	00	Appelez-nous	-
8	5700A236-60		Light, Indicator	00	Appelez-nous	-
8	7414P004-60		Insulator, Terminal	00	Appelez-nous	-
9	7711P420-60		Knob, Clock (button-wht)	00	Appelez-nous	-
10	7711P419-60		Knob, Clock (wht)	00	Appelez-nous	-
11	7739P035-60		Knob, T-stat	00	Appelez-nous	-
12	7214P023-60		Sleeve, Switch (wht)	00	Appelez-nous	-
13	3605F131-51		Plate, Reinforcement	00	Appelez-nous	-
14	3605F170-80		Plate, Switch	00	Appelez-nous	-
15	7403P204-60		Switch, Push (wht)	00	Appelez-nous	-
16	7403P023-60		Switch, Selector	00	Appelez-nous	-
17	7404P039-60		Thermostat, Upper	00	Appelez-nous	-
17	7003P033-60		Insulation Thermostat	00	Appelez-nous	-
17	7101P279-60		Screw W/washer	00	Appelez-nous	-
18	7101P280-60		Screw W/washer (blk)	00	Appelez-nous	-
19	3605F164-51		Plate, Conduit	00	Appelez-nous	-
20	7739P035-60		Knob, T-stat	00	Appelez-nous	-
20	WP74003611		Knob, Selector Switch   (Replaces: 7739P034-60)	00			$ 17.45
21	7101P079-60		Screw	00	Appelez-nous	-
22	7404P042-60		Thermostat, Lower	00	Appelez-nous	-
22	7101P239-60		Screw	00	Appelez-nous	-
23	8312P017-60		Shaft, Clock	00	Appelez-nous	-
24	WP7101P126-60		Screw   (Replaces: 7101P061-60)	00		Immediately	$ 6.85
25	16000082		Manual, Service-no Refund	00	Appelez-nous	-
