02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - Shelves And Supports


06 - System And Automatic Defrost Parts

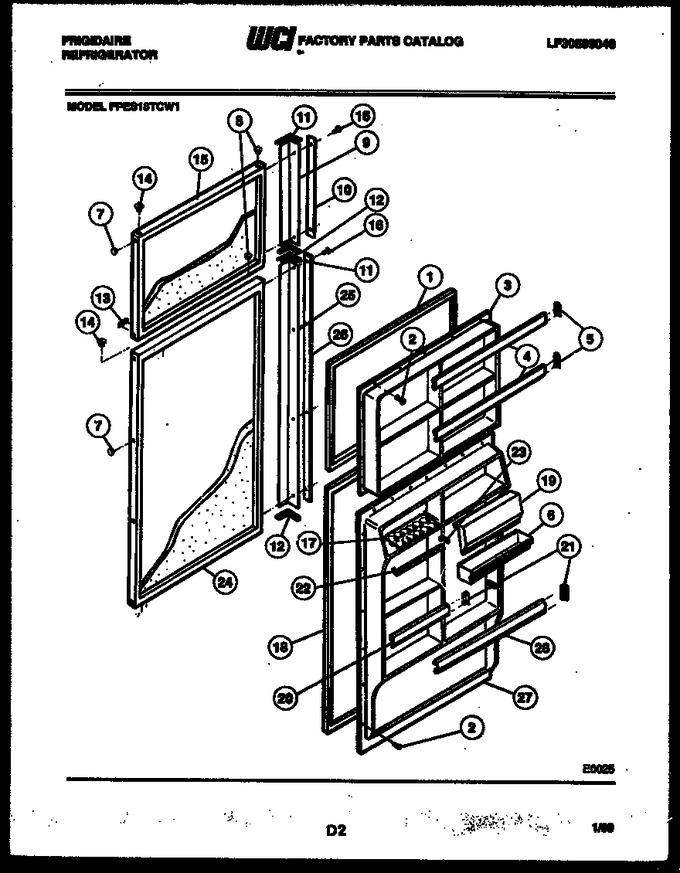

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08009734		Gasket-freezer		Appelez-nous	-
2	08002748		Screw		Appelez-nous	-
3	08009835		Panel-inner		Appelez-nous	-
4	3203127		Rack-freezer (2)		Appelez-nous	-
5	3017379		Support Ls (2)		Appelez-nous	-
6	08009838		Bin-utility (2)		Appelez-nous	-
7	08000181		Button-plug (almd)		Appelez-nous	-
8	08000177		Button-plug, Almond		Appelez-nous	-
9	08009803		Handle-complete		Appelez-nous	-
10	08010232		Trim-handle		Appelez-nous	-
11	08010239		Cap (2)		Appelez-nous	-
12	08010238		Cap (2)		Appelez-nous	-
13	3916127		Nameplate		Appelez-nous	-
14	08012007		Bearing-hinge		Appelez-nous	-
15	08009933		Panel-freezer-almond		Appelez-nous	-
16	08013645		Screw (6)		Appelez-nous	-
17	08009719		Tray-egg		Appelez-nous	-
18	08015544		Gasket-refr		Appelez-nous	-
19	08009789		Door-dairy		Appelez-nous	-
20	08009702		Rack-refr		Appelez-nous	-
21	3018918		Support Ls (2)		Appelez-nous	-
22	3203128		Rack-door		Appelez-nous	-
23	3017379		Support Ls		Appelez-nous	-
24	08009930		Panel-refr-almond		Appelez-nous	-
25	08009901		Handle-complete		Appelez-nous	-
26	08010233		Trim		Appelez-nous	-
27	08009796		Panel-inner		Appelez-nous	-
28	08009701		Rack-door		Appelez-nous	-
*67930	3007739		Insulation-bulk		Appelez-nous	-
*67960	08011780		Door Conversion Kit-almond		Appelez-nous	-
21A	3018917		Support Rs (2) (non-illustrated)		Appelez-nous	-
23A	3017376		Support Rs (non-illustrated)		Appelez-nous	-
5A	3017376		Support Rs (2) (non-illustrated)		Appelez-nous	-
