SELECT A DIAGRAM

01 - Cabinet


02 - Compressor


03 - Controls


04 - Evaporator Compartment


05 - Freezer Door


06 - Fresh Food Door


07 - Ice Maker


08 - Shelves & Accessories (freezer)


09 - Shelves & Accessories (fresh Food)


10 - Supplemental Information


11 - Wiring Information

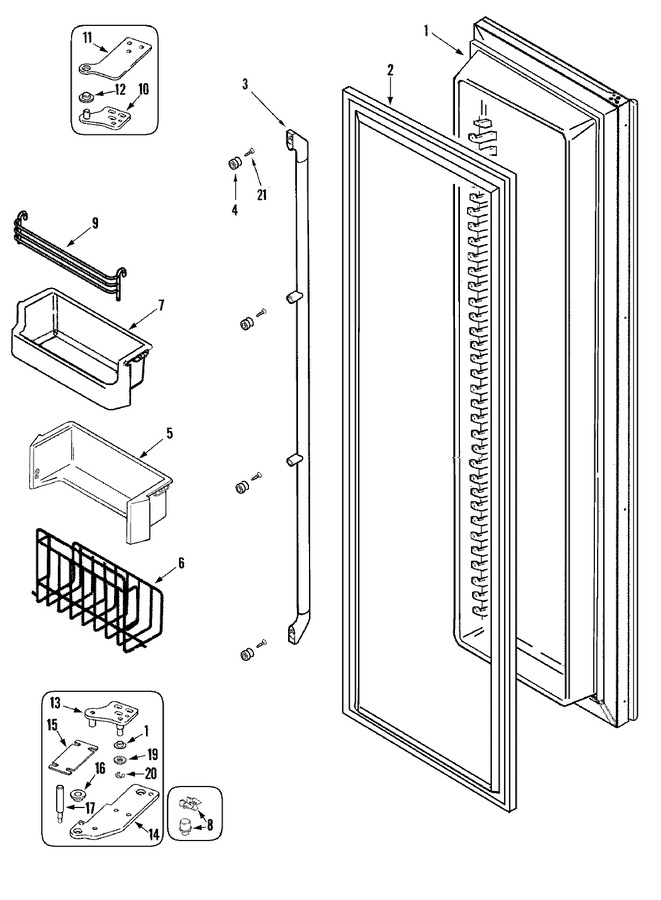

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67003857		Door Assy., Freezer (stnls)	10	Appelez-nous	-
2	67001468		Seal, Frz. Door	10			$ 181.95
3	67006180		Handle Assy.	10	Appelez-nous	-
3	67006181		Screw, Set	10	Appelez-nous	-
3	67006182		Screw, Set	10	Appelez-nous	-
3	WP489497		Screw   (Replaces: 67006184)	10		Immediately	$ 26.18
4	67006189		Mount, Handle	10	Appelez-nous	-
5	67001476		Frame, Basket	10	Appelez-nous	-
6	67002549		Basket, Tilt	10	Appelez-nous	-
7	67001474		Shelf, Pick Off	10	Appelez-nous	-
8	67001626		Stop Assy., Door	10	Appelez-nous	-
9	67006270		Wire, Pick Off Shelf	10	Appelez-nous	-
10	67001466		Screw	10	Appelez-nous	-
10	67001471		Hinge, Upper	10	Appelez-nous	-
10	67001447		Screw	10			$ 18.32
11	67001448		Plate, Upper Hinge	10	Appelez-nous	-
11	67001449		Screw	10	Appelez-nous	-
12	67001450		Bushing, Upper Hinge	10			$ 17.37
13	67003243		Hinge, Lower	10	Appelez-nous	-
13	67001447		Screw	10			$ 18.32
13	67001466		Screw	10	Appelez-nous	-
14	67001531		Screw	10	Appelez-nous	-
14	67001473		Plate, Lower Hinge	10	Appelez-nous	-
15	67001453		Shim, Lower Hinge	10	Appelez-nous	-
16	67001454		Bushing, Lower Hinge	10			$ 5.54
17	WP487939		Nut, Hinge Stud   (Replaces: 67001455)	10			$ 6.95
17	67001456		Stud, Lower Hinge	10	Appelez-nous	-
18	67001458		Bushing, Closer	10			$ 34.88
19	67001459		Spacer, Closer	10			$ 36.47
20	67001460		Retainer, Closer Extension	10	Appelez-nous	-
21	67001447		Screw   (Replaces: 67006190)	10			$ 18.32

    View Diagram in Separate Window       Print Part List
