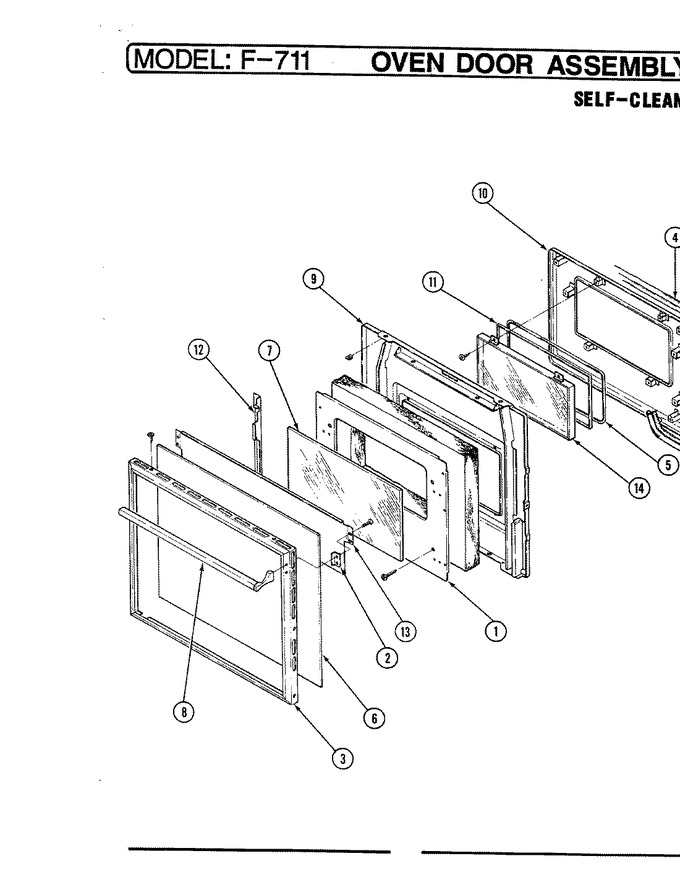

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel (-819ae)
03 - Control Panel (-819r)
04 - Door Assembly
05 - Door Assembly (self Cleaning)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W131-51 | Baffle, Door Assembly | 1 |
|
- | ||||
| 2 | 7112P017-60 | Clip, Door Handle | 1 |
|
- | ||||
| 3 | 7706P221-60 | Frame, Door Upper | 1 |
|
- | ||||
| 4 | 7201P004-60 | Gasket | 1 |
|
- | ||||
| 5 | 7201P020-60 | Gasket | 1 |
|
- | ||||
| 6 | 7902P265-60 | Glass, Door Screened | 1 |
|
- | ||||
| 7 | 7902P097-60 | Glass, Inner | 1 |
|
$ 63.87 | ||||
| 8 | 7701P017-60 | Handle, Door | 1 |
|
- | ||||
| 9 | 2402W096-12 | Lining Assy, Inner Dr | 1 |
|
- | ||||
| 9 | 2402W130-15 | Lining Assembly | 2 |
|
- | ||||
| 10 | 2410W034-15 | Pad, Door | 1-3 |
|
- | ||||
| 10 | 2410W038-15 | Pad, Oven Door | 4 |
|
- | ||||
| 11 | 3804F021-45 | Retainer, Gasket | 1 |
|
- | ||||
| 12 | 3804F051-80 | Retainer, Glass | 1 |
|
- | ||||
| 13 | 3804F017-51 | Retainer, Glass | 1 |
|
- | ||||
| 14 | 5700A082-60 | Window Assy. | 1 |
|
$ 164.77 |
