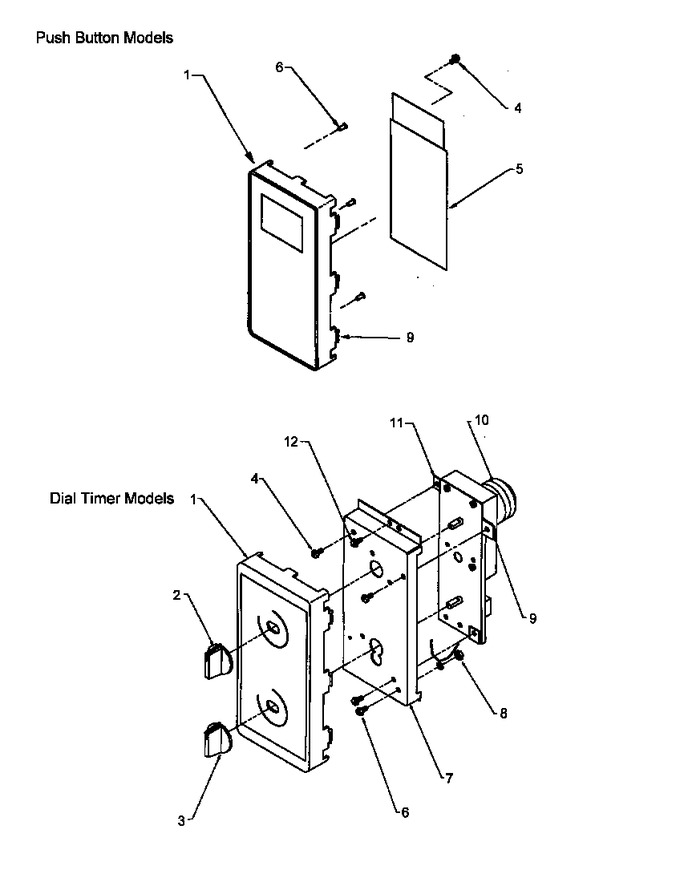

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Back-side Electical Components
02 - Cavity Assy
03 - Control Panel Assy
04 - Door Assy
05 - Interior Elec Components And Mtg Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M7X62 | Dec Panel Asy Kit |
|
- | |||||
| 2 | 3010017502 | Knob Timer Bottom |
|
- | |||||
| 3 | 3010017501 | Knob Timer Top |
|
- | |||||
| 4 | 5147-GG | Screw, Thermostat |
|
- | |||||
| 6 | 5146-FF | Screw, No.8 Mach |
|
- | |||||
| 7 | 3000030001 | Mounting Plate M7x65 |
|
- | |||||
| 8 | Y00000000 | See Note Nut -- (m2, M3, M4, M5, M6) |
|
- | |||||
| 9 | 42365P01 | U-clip |
|
- | |||||
| 10 | 2020003501 | Timer Combination 50h M22d60 |
|
- | |||||
| 11 | 5522244001 | U-clip |
|
- | |||||
| 12 | 5027-ZZ | Screw |
|
- |
