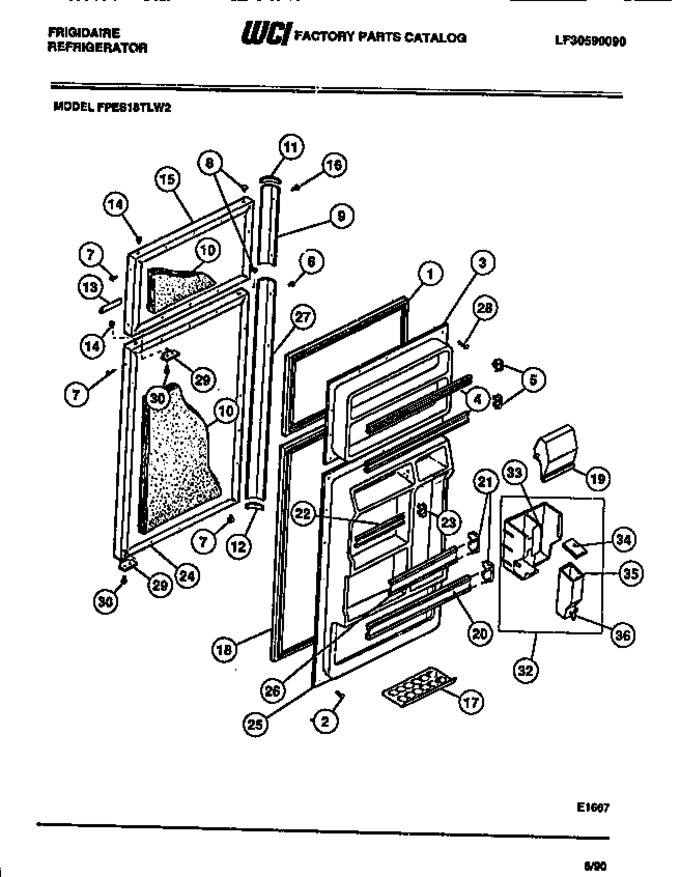

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017189 | Gasket, Freezer |
|
- | |||||
| 2 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 3 | 3205318 | Panel, Freezer, Inner |
|
- | |||||
| 4 | 3018972 | Rack, Freezer (2) |
|
- | |||||
| 5 | 5303323480 | Support, Rack, Rh (2) (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 6 | 5308013645 | Screw, Handle (4) |
|
- | |||||
| 9 | 5303017190 | Handle, Freezer (w/trim & End Caps ) |
|
- | |||||
| 10 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 11 | 5308010239 | Cap, Top (2) |
|
- | |||||
| 12 | 5308010238 | Cap, Bottom (2) |
|
- | |||||
| 13 | 3201581 | Nameplate Assy |
|
- | |||||
| 14 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 16 | 5308013645 | Screw, Handle (2) |
|
- | |||||
| 17 | 5303018932 | Egg Tray |
|
- | |||||
| 18 | 5308017487 | Gasket, Refrigerator |
|
- | |||||
| 19 | 3205319 | Door, Dairy |
|
- | |||||
| 20 | 3205320 | Rack, Refr |
|
- | |||||
| 21 | 5303325990 | Support, Rack, Rh (2) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 21 | 5303203263 | Support , Rack, Lh (2) (ni) |
|
- | |||||
| 22 | 3018423 | Rack, Refr |
|
- | |||||
| 23 | 5303323480 | Support, Rack, Rh (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 25 | 3205321 | Panel, Refr (inner) |
|
- | |||||
| 26 | 3019018 | Rack, Refr |
|
- | |||||
| 27 | 5308017497 | Handle, Refr (w/trim & End Caps) |
|
- | |||||
| 28 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 29 | 5308000255 | Door Stop (2) |
|
$ 42.20 | |||||
| 30 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 32 | 5303204775 | Beverage Center, Complete |
|
- | |||||
| 33 | 3205322 | Housing, Bvg Ctr |
|
- | |||||
| 34 | 3205292 | Lid, Bvg Container |
|
- | |||||
| 35 | 3205291 | Container |
|
- | |||||
| 36 | 3205288 | Spigot |
|
- | |||||
| 15B | 08009932 | Panel, Freezer (wheat) |
|
- | |||||
| 23A | 5303323481 | Support, Rack, Lh (Replaces: 5303017381) |
|
Immediately | $ 14.18 | ||||
| 24B | 5308009929 | Panel, Refr (wheat) |
|
- | |||||
| 36A | 3205289 | Grommet, Spigot |
|
- | |||||
| 36B | 3205290 | Nut, Spigot |
|
- | |||||
| 5A | 5303323481 | Support, Rack, Lh (2) (ni) (Replaces: 5303017381) |
|
Immediately | $ 14.18 | ||||
| 7B | 5308000180 | Plug Button, Wheat (8) |
|
- | |||||
| 8B | 5308000176 | Plug Button - Wheat (2) |
|
- |
