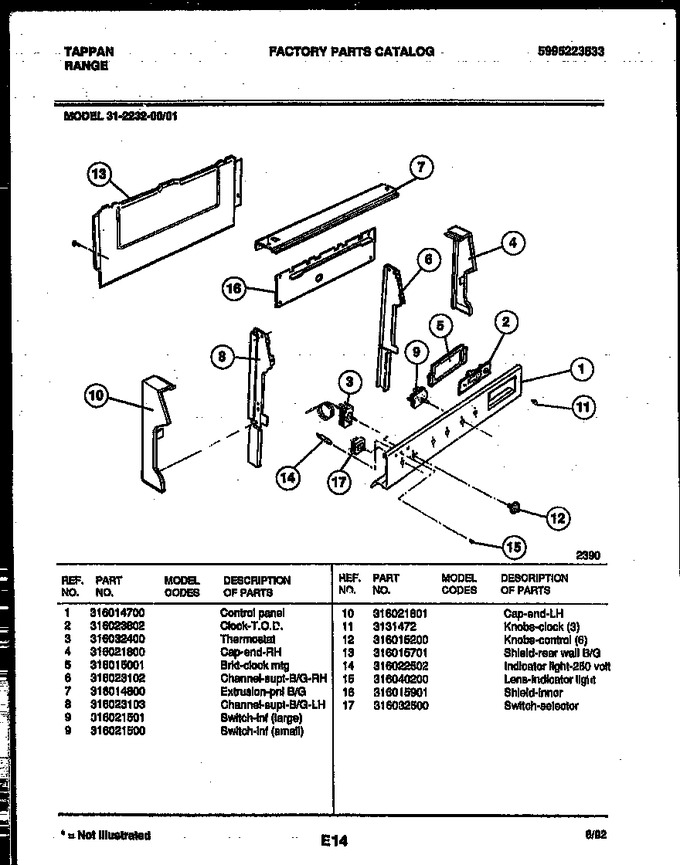

02 - Backguard
03 - Door Parts
04 - Body Parts
05 - Drawer Parts
06 - Broiler Parts
07 - Cooktop Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316014700 | Control Panel |
|
- | |||||
| 2 | 316023802 | Clock-t.o.d. |
|
- | |||||
| 3 | 316032400 | Thermostat |
|
- | |||||
| 4 | 316021800 | Cap-end-rh |
|
$ 81.32 | |||||
| 5 | 316015001 | Brkt-clock Mtg |
|
- | |||||
| 6 | 316023102 | Channel-supt-b/g-rh |
|
- | |||||
| 7 | 316014800 | Extrusion-pnl B/g |
|
- | |||||
| 8 | 316023103 | Channel-supt-b/g-lh |
|
- | |||||
| 9 | 316436001 | Switch-inf (large) (Replaces: 316021501) |
|
Immediately | $ 51.68 | ||||
| 9 | 5303935086 | Switch-inf (small) (Replaces: 316021500) |
|
Immediately | $ 51.95 | ||||
| 10 | 316021801 | Cap-end-lh |
|
$ 94.29 | |||||
| 11 | 3131472 | Knobs-clock (3) |
|
- | |||||
| 12 | 316015200 | Knobs-control (6) |
|
- | |||||
| 13 | 316015701 | Shield-rear Wall B/g |
|
- | |||||
| 14 | 316022502 | Indicator Light-250 Volt |
|
- | |||||
| 15 | 316040200 | Lens-indicator Light |
|
- | |||||
| 16 | 316015901 | Shield-inner |
|
- | |||||
| 17 | 316032500 | Switch, Selector |
|
- |
