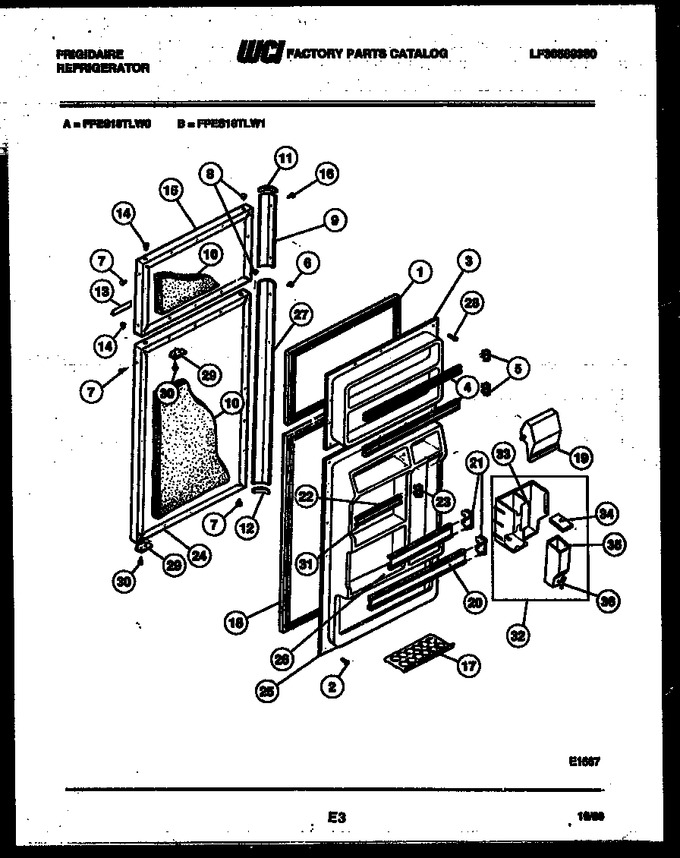

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017189 | Gasket-freezer |
|
- | |||||
| 2 | 08002748 | Screw |
|
- | |||||
| 3 | 3205318 | Panel, Freezer, Inner |
|
- | |||||
| 4 | 3018972 | Rack, Freezer (2) |
|
- | |||||
| 5 | 3017378 | Support-rack-rh (2) |
|
- | |||||
| 6 | 08013645 | Screw-handle |
|
- | |||||
| 7 | 08000181 | Button-plug (almd) |
|
- | |||||
| 8 | 08000177 | Button-plug, Almond |
|
- | |||||
| 9 | 3017190 | Handle-freezer (w/ Trim & End Caps) |
|
- | |||||
| 10 | 3007739 | Insulation-bulk |
|
- | |||||
| 11 | 08010239 | Cap-top (2) |
|
- | |||||
| 12 | 08010238 | Cap-bottom (2) |
|
- | |||||
| 13 | 3201581 | Nameplate Assy |
|
- | |||||
| 14 | 08012007 | Bearing-hinge |
|
- | |||||
| 15 | 08009933 | Panel-freezer, Almd |
|
- | |||||
| 16 | 08013645 | Screw-handle (2) |
|
- | |||||
| 17 | 3018932 | Egg Tray |
|
- | |||||
| 18 | 08017487 | Gasket-refrigerator |
|
- | |||||
| 19 | 3205319 | Door, Dairy |
|
- | |||||
| 20 | 3205320 | Rack, Refr |
|
- | |||||
| 21 | 5303325990 | Support-rack-rh (2) (Replaces: 3203262) |
|
Immediately | $ 17.01 | ||||
| 22 | 3018423 | Rack, Refr |
|
- | |||||
| 23 | 3017378 | Support-rack-rh |
|
- | |||||
| 24 | 08009930 | Panel-refr, Almd |
|
- | |||||
| 25 | 3205321 | Panel, Refr (inner) |
|
- | |||||
| 26 | 3019018 | Rack, Refr |
|
- | |||||
| 27 | 08017497 | Handle-refr (w/ Trim & End Caps) |
|
- | |||||
| 28 | 08002748 | Screw |
|
- | |||||
| 29 | 08000255 | Door Stop (2) |
|
- | |||||
| 30 | 08011745 | Screw (2) |
|
- | |||||
| 31 | 3017381 | Support-rack-lh |
|
- | |||||
| 32 | 3204775 | Beverage Center-complete |
|
- | |||||
| 33 | 3205322 | Housing, Bvg Ctr |
|
- | |||||
| 34 | 3205292 | Lid, Bvg Container |
|
- | |||||
| 35 | 3205291 | Container |
|
- | |||||
| 36 | 3205288 | Spigot |
|
- | |||||
| *29822 | 3205289 | Grommet, Spigot |
|
- | |||||
| *29823 | 3205290 | Nut, Spigot |
|
- | |||||
| 21A | 5303325991 | Support-rack-lh (2) (non-illustrated) (Replaces: 3203263) |
|
$ 17.01 | |||||
| 5A | 3017381 | Support-rack-lh (2) (non-illustrated) |
|
- |
