01 - Body

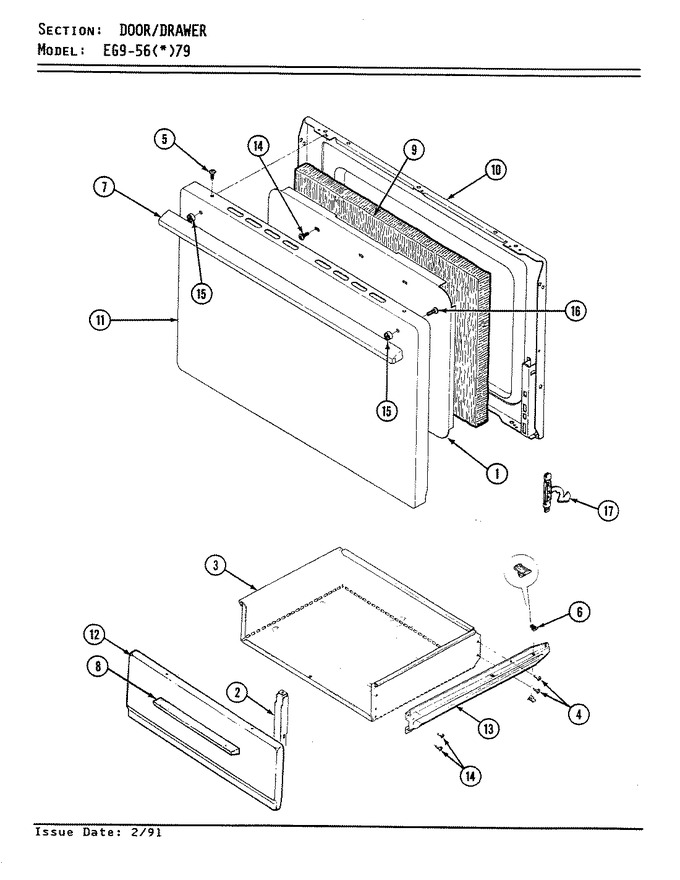

02 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F026-51 | Baffle | 1 |
|
- | ||||
| 2 | 3801F115-51 | Bracket, Drawer | 1 |
|
- | ||||
| 2 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 3 | 3405F008-80 | Drawer, Service | 1 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 5 | 7101P287-60 | Screw, Metal Grounding | 1 |
|
$ 12.03 | ||||
| 6 | 8016P009-60 | Glide, Drawer | 1 |
|
- | ||||
| 6 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 7 | 7701P030-60 | Handle, Door (chr) | 1 |
|
- | ||||
| 8 | 7701P012-60 | Handle, Drawer (chr) | 1 |
|
- | ||||
| 8 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 1 |
|
$ 5.82 | ||||
| 9 | 7002P013-60 | Insulation | 1 |
|
- | ||||
| 10 | 2402W155-19 | Lining, Oven Door | 24 |
|
- | ||||
| 10 | 2402W155-23 | Lining Assy, Oven Door | 1 |
|
- | ||||
| 11 | 2401F041-74 | Panel, Oven Dr-a | 1 |
|
- | ||||
| 12 | 2416F017-74 | Panel, Storage Drawer Alm | 1 |
|
- | ||||
| 13 | 3406F026-80 | Runner, Inner | 1 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 15 | 8010P002-60 | Spacer, Handle | 1 |
|
- | ||||
| 16 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 1 |
|
Immediately | $ 7.69 | |||
| 17 | 3420A033-34 | Stop, Oven Door | 1 |
|
- |
