SELECT A DIAGRAM

02 - Door Section


03 - Cabinet


04 - Fan Assembly


05 - Shelves, Controls, Divider, Mullion


06 - Cooling System

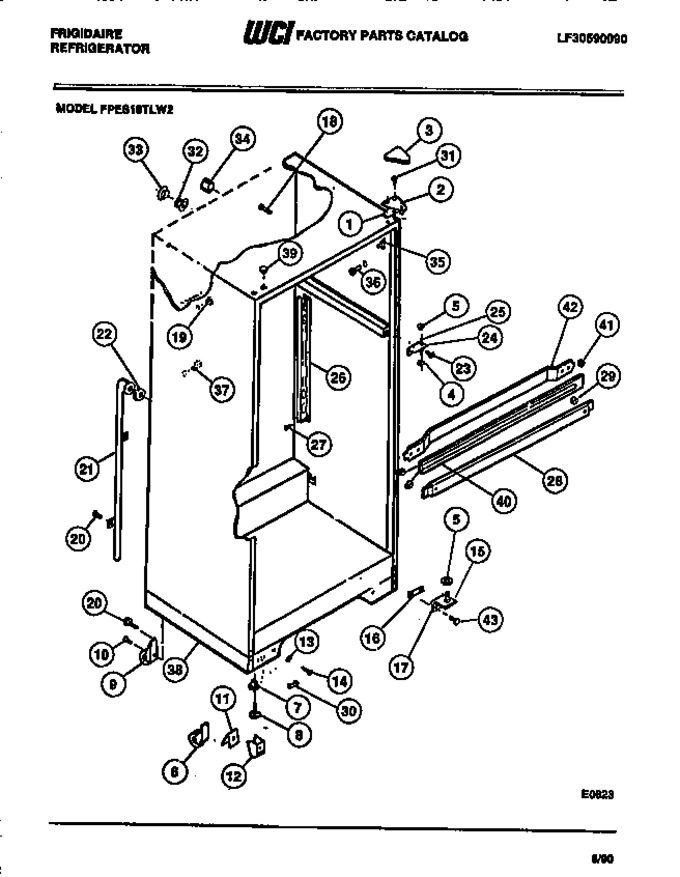

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001037		Shim, Top Hinge				$ 12.39
2	5308012843		Hinge-top				$ 71.47
4	5308000186		Washer, Nylon			Immediately	$ 6.02
5	5308000007		Washer, Nylon (2)		Appelez-nous	-
6	5308009760		Roller, Front (2)		Appelez-nous	-
7	5308003584		Nut-anchor (2)				$ 7.30
8	5303205540		Screw, Leveling (2)		Appelez-nous	-
9	5308009773		Roller Assy, Rear, (2)		Appelez-nous	-
10	5308009762		Bolt, Roller Mtg (2)		Appelez-nous	-
11	5308009790		Spring, Roller Adj (2)				$ 4.30
12	5308013678		Support, Base (2)		Appelez-nous	-
13	5308011326		Washer (2)				$ 9.87
14	5308009761		Bolt, Roller Adj (2)				$ 18.61
15	5303001321		Pin, Bottom Hinge				$ 17.25
16	5303001323		Shim, Bottom Hinge		Appelez-nous	-
17	5303202834		Bracket, Bottom Hinge				$ 89.41
18	5308000097		Support, Coil Cover (2)		Appelez-nous	-
19	5308016571		Plug, Freezer Liner (3)				$ 4.79
20	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
21	5303210377		Drain Tube				$ 109.31
22	5303207353		Ring Seal, Tube				$ 6.81
23	5308012258		Screw				$ 2.25
24	5303001369		Bracket-ctr Hinge		Appelez-nous	-
25	5308000184		Pin, Ctr Hinge				$ 8.87
26	5308000302		Channel, Rh & Lh		Appelez-nous	-
27	5308010253		Screw, Mtg (6)		Appelez-nous	-
29	5303206754		Washer, Steel (2)		Appelez-nous	-
30	5303001478		Plug, Hinge Hole		Appelez-nous	-
31	241710601		Screw   (Replaces: 5303001479)				$ 13.46
32	5303001286		Ferrule-inner		Appelez-nous	-
33	5303001287		Ferrule-outer		Appelez-nous	-
34	5303001198		Tube, Rubber (2)		Appelez-nous	-
36	5304509705		Grommet, Shelf (2)   (Replaces: 5303001609)				$ 10.01
37	5304500407		Grommet, Shelf (2)   (Replaces: 5308009759)			Immediately	$ 6.38
38	5308010092		Base, Cabinet		Appelez-nous	-
40	5308002662		Heater-mullion		Appelez-nous	-
41	5303200464		Spacer, Mullion (2)		Appelez-nous	-
42	5308010008		Strap-mullion Mtg		Appelez-nous	-
43	5303001320		Screw (2)		Appelez-nous	-
19A	5308016571		Plug, Refr Liner (2) (ni)				$ 4.79
28D	5303200370		Mullion, Almd		Appelez-nous	-
35D	5303202340		Corner Trim, Almd		Appelez-nous	-
39D	5303001389		Plug, Almd		Appelez-nous	-
3D	5308012933		Hinge Cover, Almd		Appelez-nous	-
43A	5308012296		Tapping Plate (4) (ni)				$ 47.44

    View Diagram in Separate Window       Print Part List
