01 - Body

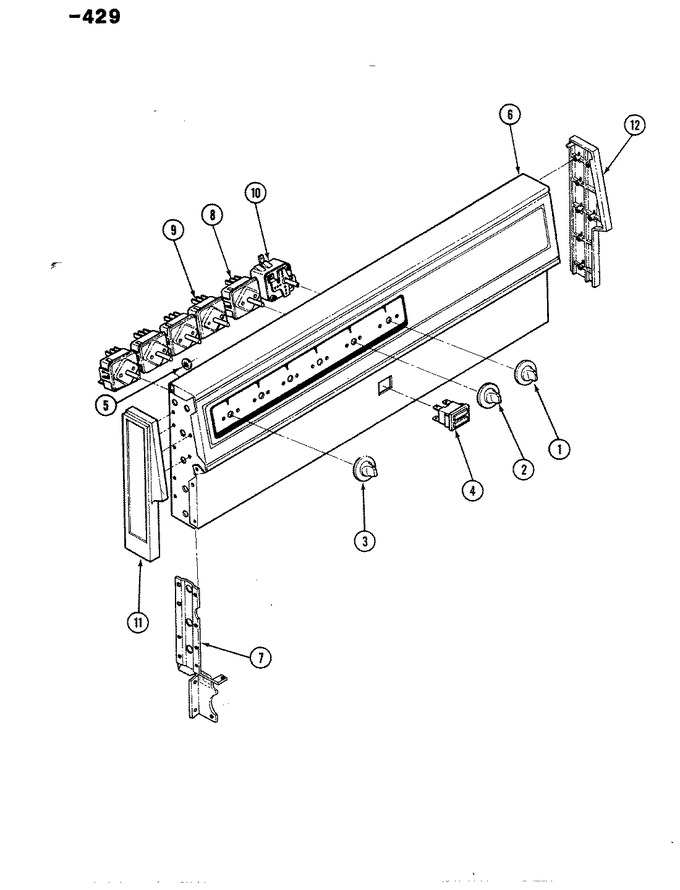

02 - Control Panel (eg956x429)
03 - Door
04 - Service Drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7711P407-60 | Knob, Thermostat | 1 |
|
- | ||||
| 2 | 7711P406-60 | Knob, Selector | 1 |
|
- | ||||
| 3 | 7711P346-60 | Knob, Infinite | 1 |
|
- | ||||
| 4 | 7407P015-60 | Light, Indicator | 1 |
|
- | ||||
| 4 | 7703P170-60 | Inlay, Nameplate-cen | 1 |
|
- | ||||
| 5 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 6 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 6 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 6 | 2601W200-84 | Panel, Bkgd Almond | 1 |
|
- | ||||
| 6 | 7718P009-60 | Plug, Hole | 1 |
|
- | ||||
| 7 | 3807F010-80 | Support | 1 |
|
- | ||||
| 7 | 3807F012-80 | Support | 1 |
|
- | ||||
| 7 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 8 | 7403P031-60 | Switch, Selector | 1 |
|
- | ||||
| 9 | W11122006 | Switch, Inf. 250v (Replaces: 7403P181-60) | 1 |
|
$ 145.12 | ||||
| 10 | 7404P029-60 | Thermostat | 1 |
|
- | ||||
| 11 | 7726P010-60 | End Cap, Backguard (lt-chr) | 1 |
|
- | ||||
| 12 | 7726P020-60 | End Cap, Backguard (rt-blk) | 1 |
|
- | ||||
| 12 | 7728P056-60 | Trim, Inlay Bkgd | 1 |
|
- |
