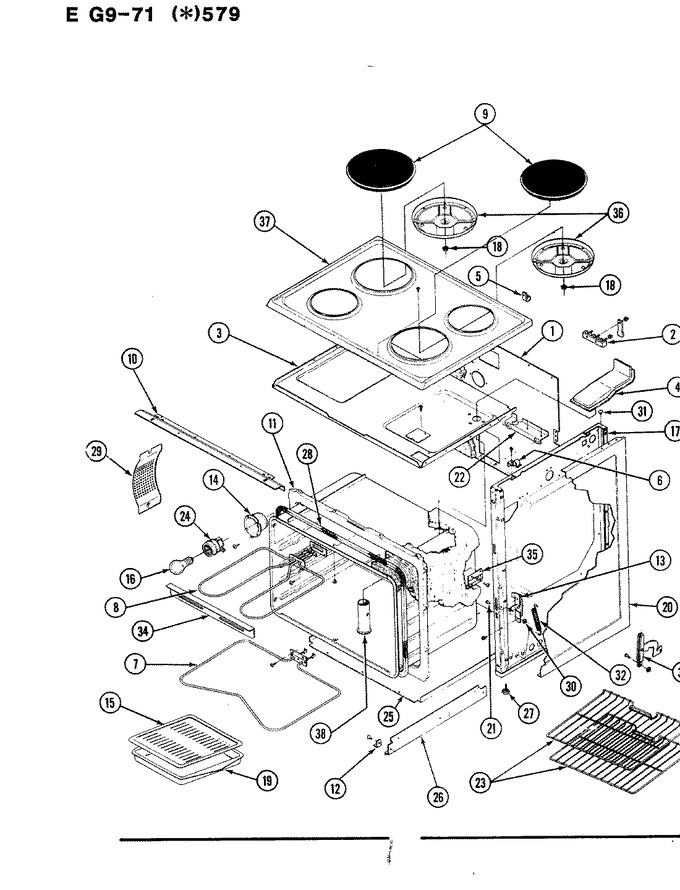

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F103-80 | Back, Main | 1 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 3 | 4011F128-80 | Bottom, Burner Box | 1 |
|
- | ||||
| 4 | 3802F046-80 | Brace, Main Top | 1 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 4 | 4006W056-45 | Box Assy, Vent | 1 |
|
- | ||||
| 4 | 3802F008-80 | Brace, Back-left | 1 |
|
- | ||||
| 4 | 3802F003-80 | Brace | 1 |
|
- | ||||
| 4 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 4 | 3801F100-51 | Bracket | 1 |
|
- | ||||
| 5 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 5 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 6 | 7112P030-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 6 | 4005F257-80 | Cover, Back Burner Box | 1 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 6 | 4005F013-80 | Shield | 1 |
|
- | ||||
| 7 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 1 |
|
$ 133.20 | ||||
| 8 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 8 | 3802F010-80 | Brace, Back-right | 1 |
|
- | ||||
| 9 | 7406P024-60 | Element, Solid Disc (8``) | 1 |
|
- | ||||
| 9 | WP3147131 | Element (6``) (Replaces: 7406P023-60) | 1 |
|
$ 244.76 | ||||
| 10 | 4012F007-80 | Frame, Burner Box | 1 |
|
- | ||||
| 11 | 2201F060-23 | Front, Oven Upper | 1 |
|
- | ||||
| 12 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 12 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 13 | 3418A030-34 | Hinge Assy. (rt) | 1 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P104-60) | 1 |
|
Immediately | $ 6.85 | |||
| 13 | 3418A029-34 | Hinge Assy. (lt) | 1 |
|
$ 48.47 | ||||
| 13 | 4001F048-80 | Housing, Main Wire | 1 |
|
- | ||||
| 14 | 4001F016-23 | Housing, Lamp | 1 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 15 | 4396923 | Insert, Broil Pan (Replaces: 3413F012-15) | 1 |
|
Immediately | $ 52.04 | |||
| 16 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 17 | 4009W029-80 | Lining Assy, Inner Side | 1 |
|
- | ||||
| 18 | 7103P074-60 | Nut, Surface Element | 1 |
|
- | ||||
| 19 | 4396923 | Pan, Broiler (Replaces: 3401F015-15) | 1 |
|
Immediately | $ 52.04 | |||
| 20 | 2618F052-74 | Panel, Side (alm) |
|
- | |||||
| 21 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 22 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 1 |
|
Immediately | $ 6.85 | |||
| 22 | 3605F146-51 | Plate, Conduit Reinforcement | 1 |
|
$ 6.06 | ||||
| 22 | 3605F148-80 | Plate, Conduit | 1 |
|
- | ||||
| 23 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 24 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 25 | 7107P017-60 | Rivet | 1 |
|
- | ||||
| 25 | 3804F010-50 | Retainer | 1 |
|
- | ||||
| 25 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 25 | 3804F093-80 | Retainer, Bottom Ins. | 1 |
|
- | ||||
| 26 | 3406F007-80 | Runner, Outer | 1 |
|
- | ||||
| 27 | Y7101P25460 | Leg, Leveling | 1 |
|
- | ||||
| 28 | 7212P002-60 | Seal, Oven | 1 |
|
- | ||||
| 29 | 3604F017-45 | Shield | 1 |
|
- | ||||
| 30 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 31 | 8010P048-60 | Spacer, Main Top | 1 |
|
- | ||||
| 32 | 7208P007-60 | Seal, Silastic | 1 |
|
- | ||||
| 32 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 33 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 34 | 3807F176-15 | Support, Broil Element | 1 |
|
- | ||||
| 35 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 35 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 36 | 8004P011-60 | Support, 6`` | 1 |
|
- | ||||
| 36 | 8004P012-60 | Support, 8`` | 1 |
|
- | ||||
| 37 | 2002W032-84 | Top Assy, Main Almond |
|
- | |||||
| 38 | WPW10339879 | Strap, Tube (Replaces: 8019P003-60) | 1 |
|
$ 7.11 | ||||
| 38 | 8026P015-60 | Tube, Oven Vent | 1 |
|
- | ||||
| 39 | 8112P016-60 | Manual, Use & Care | 1 |
|
- |
