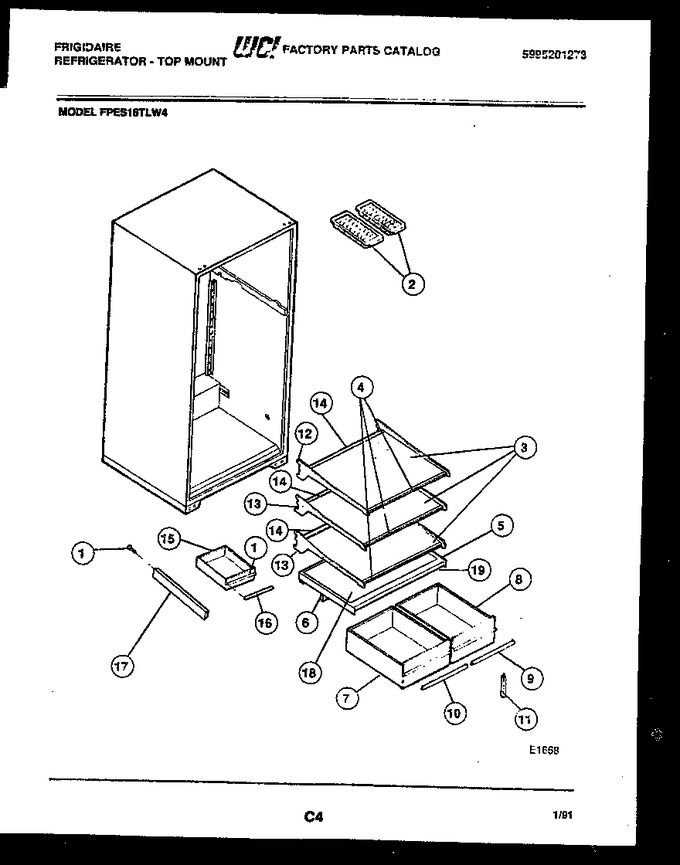

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014528 | Screw, Hanger (2) |
|
$ 4.31 | |||||
| 2 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 3 | 5303200319 | Glass, Shelf (3) |
|
- | |||||
| 4 | 3018980 | Trim, Front (3) |
|
- | |||||
| 5 | 5303018983 | Cover, Crisper |
|
- | |||||
| 6 | 5303200329 | Gasket, Crisper Cvr |
|
- | |||||
| 7 | 3018873 | Pan, Crisper, Lh (sm) |
|
- | |||||
| 8 | 3018982 | Pan, Crisper, Rh(lge) |
|
- | |||||
| 9 | 3017422 | Trim, Pan, Rh |
|
- | |||||
| 10 | 3017423 | Trim, Pan, Lh |
|
- | |||||
| 11 | 5303206507 | Support, Crisper Cover, Adj |
|
- | |||||
| 12 | 3205329 | Frame, Cantilever, Meat Keeper Shelf |
|
- | |||||
| 13 | 3200327 | Frame, Cantilever (2) |
|
- | |||||
| 14 | 3200326 | Trim, Rear (3) |
|
- | |||||
| 15 | 3018875 | Pan, Meat |
|
- | |||||
| 16 | 3017424 | Trim, Meat Pan |
|
- | |||||
| 17 | 5303210016 | Hanger, Meat Pan, Lh |
|
$ 134.09 | |||||
| 18 | 3200389 | Glass, Crisper Cover |
|
- | |||||
| 19 | 3018984 | Trim, Cover |
|
- | |||||
| *40466 | 5300170910 | Clip-cantilever Shelf (6) |
|
$ 2.60 | |||||
| *40466 | 5303018645 | Container, Ice |
|
- | |||||
| 12A | 5303210634 | Retainer-glass-meat Keeper Shelf-front |
|
- | |||||
| 13A | 3200321 | Retainer-glass-front (2) (non-illustrated) |
|
- | |||||
| 17A | 5303210017 | Hanger, Meat Pan, Rh (non Illustrated) |
|
$ 107.89 | |||||
| 3A | 3200901 | Rail-glass Sprt (6) (non-illustrated) |
|
- |
