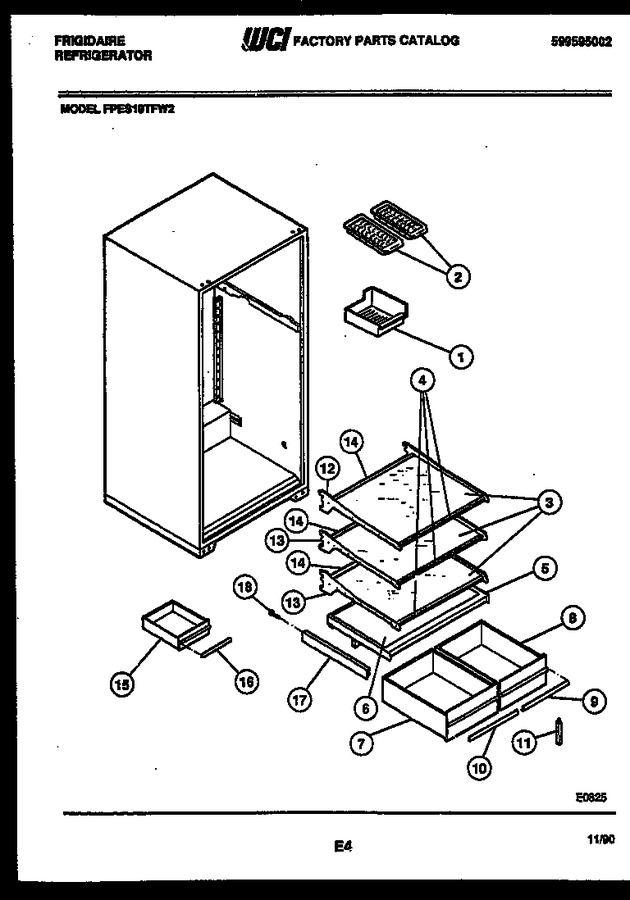

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212895 | Ice Container |
|
- | |||||
| 2 | 1121808 | Ice Tray (2) |
|
- | |||||
| 3 | 5303200319 | Glass, Shelf (3) |
|
- | |||||
| 4 | 3018980 | Trim, Front (3) |
|
- | |||||
| 5 | 5303018983 | Cover-drisper |
|
- | |||||
| 6 | 3200389 | Glass-cover Crisper |
|
- | |||||
| 7 | 3018982 | Pan-crisper Lh |
|
- | |||||
| 8 | 3018873 | Pan-crisper Rh |
|
- | |||||
| 9 | 3017423 | Trim-pan Rh |
|
- | |||||
| 10 | 3017422 | Trim-pan Lh |
|
- | |||||
| 11 | 5303206507 | Adj Support-crisper Cover |
|
- | |||||
| 12 | 3200398 | Frame-cantilever Meat Keeper |
|
- | |||||
| 13 | 3200327 | Frame, Cantilever (2) |
|
- | |||||
| 14 | 3200326 | Trim-rear Retainer (3) |
|
- | |||||
| 15 | 3018987 | Pan, Meat |
|
- | |||||
| 16 | 3018986 | Trim, Meat Pan |
|
- | |||||
| 17 | 5303210016 | Hanger, Meat Pan, Lh |
|
$ 134.09 | |||||
| 18 | 8014528 | Screw-hanger (2) |
|
- | |||||
| 13A | 3200321 | Retainer-glass (2) (non-illustrated) |
|
- | |||||
| 13B | 3200408 | Retainer-glass, Meat Keeper (non-illustrated) |
|
- | |||||
| 13C | 3200901 | Glass Support-side (non-illustrated) |
|
- | |||||
| 17A | 5303210017 | Hanger, Meat Pan, Rh (non Illustrated) |
|
$ 107.89 | |||||
| 5A | 3018984 | Trim-cover Crisper (non-illustrated) |
|
- | |||||
| 6A | 5303200329 | Gasket-crisper Cvr (non-illustrated) |
|
- |
