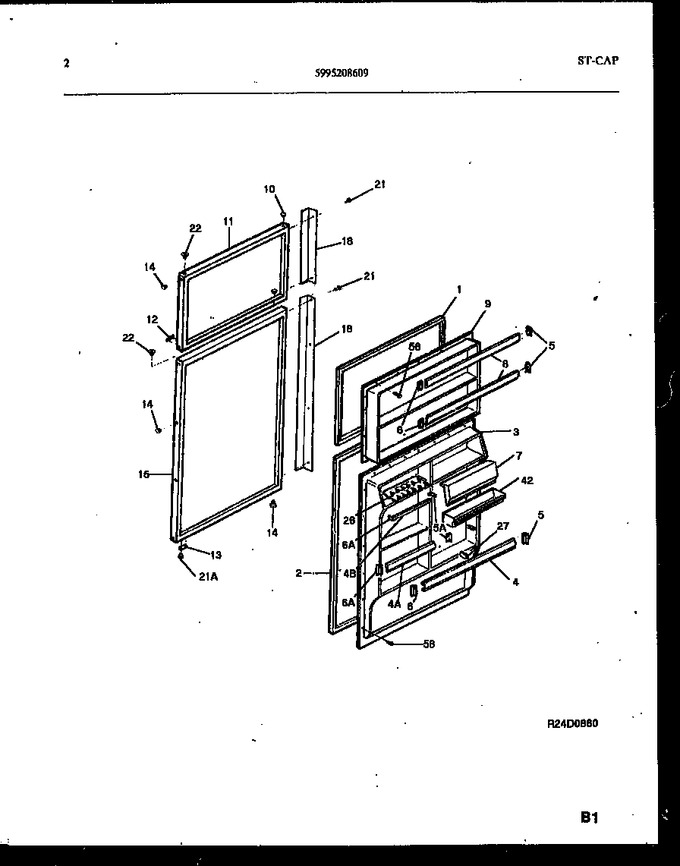

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017189 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5308017487 | Gasket, Refr Door, Magnetic |
|
- | |||||
| 3 | 3018976 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 3018975 | Rack-door, Lower |
|
- | |||||
| 5 | 5303323480 | Support-door Rack-rh (3) (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 6 | 5303323481 | Support-door Rack-lh (3) (Replaces: 5303017381) |
|
Immediately | $ 14.18 | ||||
| 7 | 3018974 | Door-dairy (small) |
|
- | |||||
| 8 | 3018972 | Rack-door, (2) |
|
- | |||||
| 9 | 3018971 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Button Plug, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916052 | Panel-frzr Door, White |
|
- | |||||
| 12 | 3201581 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Button Plug, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916621 | Panel-refr Door, White |
|
- | |||||
| 18 | 5303272664 | Handle-door, White, Frzr |
|
- | |||||
| 18 | 5303272661 | Handle-door, White, Refr |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 4A | 3019018 | Rack-door, Middle |
|
- | |||||
| 4B | 3018423 | Rack-door, Upper-refrig |
|
- | |||||
| 5A | 5303325990 | Support-door Rack, Rh, (2) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 6A | 5303203263 | Support-door Rack, Lh, (2) |
|
- |
