SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts

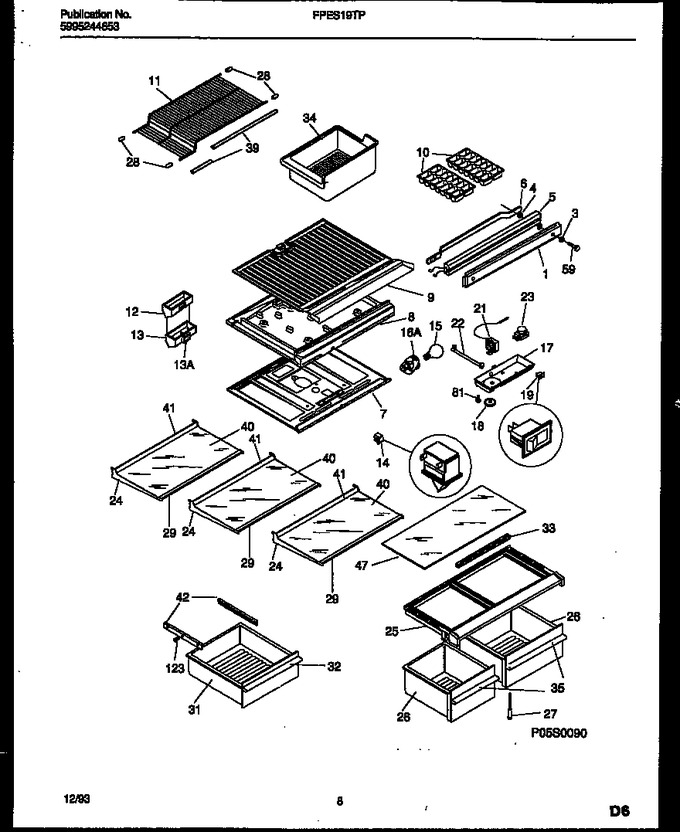

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200370		Mullion, Almond		Appelez-nous	-
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer-mullion Mtg, Steel		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	3018993		Top Panel-refr		Appelez-nous	-
8	3018994		Divider - Styrofoam		Appelez-nous	-
9	5303211427		Bottom Panel-frzr		Appelez-nous	-
10	01121808		Ice Tray, Plastic		Appelez-nous	-
11	3018979		Shelf-freezer-step		Appelez-nous	-
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	3018895		Box, Control		Appelez-nous	-
18	3018893		Knob, Temp Control		Appelez-nous	-
19	5303018896		Switch, Energy Saver		Appelez-nous	-
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	5303210022		Frame-full Shelf, Cantilever, (2)		Appelez-nous	-
25	5303018983		Cover-crisper Pan		Appelez-nous	-
26	5303299801		Pan-crisper, Lh		Appelez-nous	-
27	5303206507		Support, Crisper Cvr, Adjustable		Appelez-nous	-
28	3201150		Cap-protector				$ 4.57
29	5303272550		Trim-full Shelf, Front, (3)		Appelez-nous	-
31	5303299812		Pan-meat		Appelez-nous	-
32	5303272530		Trim, Meat Pan		Appelez-nous	-
33	5303200329		Gasket-pan Cover, 13.25``		Appelez-nous	-
34	5303212895		Container, Ice		Appelez-nous	-
35	5303272523		Trim, Crisper Pan, Lh		Appelez-nous	-
39	5303272521		Trim, Frzr Shelf, Short		Appelez-nous	-
40	5303211964		Glass-shelf, Full Shelf		Appelez-nous	-
41	5303211962		Trim-shelf, 26.12``, Rear		Appelez-nous	-
42	5303210016		Hanger, Meat Pan, Lh				$ 134.09
47	5303211968		Insert-pan Cover, Glass		Appelez-nous	-
59	5308012258		Screw				$ 2.25
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24A	215339900		Clip-cantilevr Shlf (non-illustrated)				$ 5.83
24B	5303210990		Frame-meat Kpr Shlf, Cantilever		Appelez-nous	-
25A	3018984		Trim, Crisper Cover (non Illustrated)		Appelez-nous	-
26A	5303301062		Pan-crisper, Rh		Appelez-nous	-
29A	5303209274		Retainer-glass (non-illustrated)		Appelez-nous	-
35A	5303272529		Trim, Crisper Pan, Rh		Appelez-nous	-
39A	5303272524		Trim-frzr Shelf, Long		Appelez-nous	-
41A	5303211351		Lock-shelf Trim, Rear (non-illustrated)		Appelez-nous	-
42A	5303210017		Hanger, Meat Pan, Rh (non Illustrated)				$ 107.89
7A	5303001380		Screw		Appelez-nous	-
8A	3205266		Protector-edge (non-illustrated)				$ 80.09
8B	3018900		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
