SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Shelves And Supports


07 - System And Automatic Defrost Parts

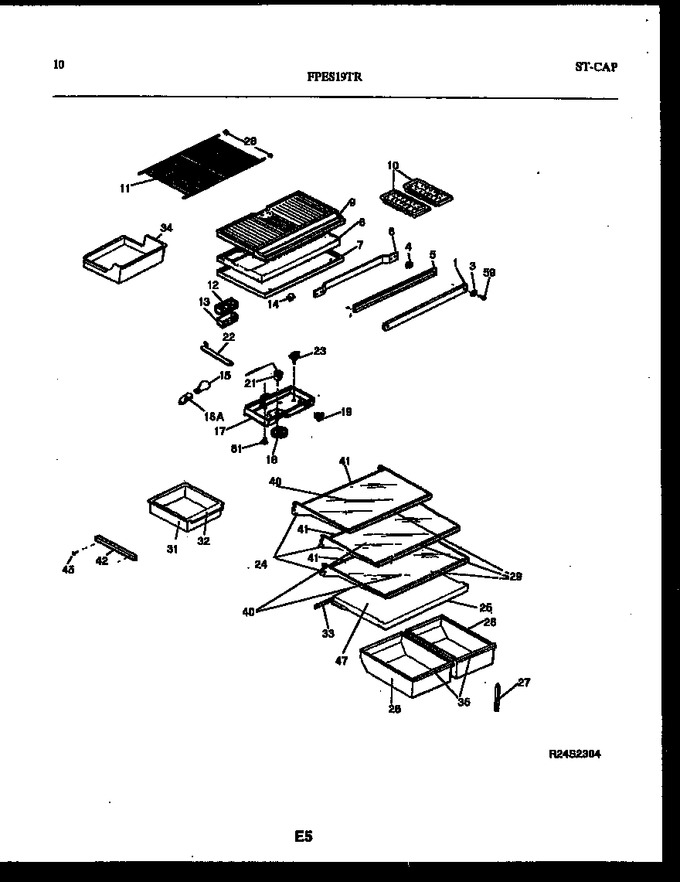

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
26	5303286894		Pan-crisper, Lh		Appelez-nous	-
26	5303286895		Pan-crisper, Rh		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		Cap-protector				$ 4.57
29	5303275679		Trim-full Shelf, (3)		Appelez-nous	-
31	5303288234		Pan-meat		Appelez-nous	-
32	5303276821		Trim-meat Pan		Appelez-nous	-
33	5303200329		Gasket-crisper Cvr, 13.25``		Appelez-nous	-
34	5303288235		Container-ice		Appelez-nous	-
35	5303275758		Trim-crisper Pan, Lh		Appelez-nous	-
35	5303275757		Trim-crisper Pan, Rh		Appelez-nous	-
40	5303276779		Shelf-glass, Full Shelf, (3)		Appelez-nous	-
41	5303211962		Trim-full Shelf, Rear, (3)		Appelez-nous	-
42	5303276782		Hanger-meat Pan, Lh				$ 107.84
45	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
47	5303275650		Insert-crisper Cvr, Glass		Appelez-nous	-
59	5308012258		Screw				$ 2.25
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*61537	5300170910		Clip-cantilevr Shlf				$ 2.60
*61537	5303211351		Lock, Rear Trim		Appelez-nous	-
29A	5303209274		Retainer-glass (non-illustrated)		Appelez-nous	-
42A	5303276781		Hanger-meat Pan, Rh (non-illustrated)				$ 59.17

    View Diagram in Separate Window       Print Part List
