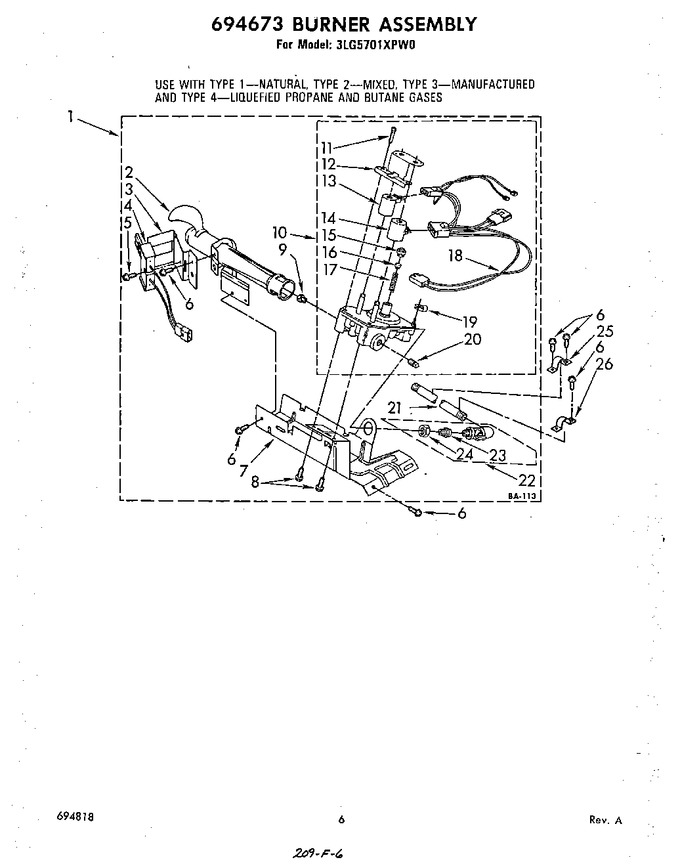

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	694673		Burner Assembly 50 Hz. (type 1, 2 & 3) (white Rodgers)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 23.33
4	279311		Ignitor (686590) (alt.)   (Replaces: 660991)			Immediately	$ 71.01
5	WPW10366705		Lock Screw & Washer (8-32 X 5/8)   (Replaces: 686953)				$ 6.75
6	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
7	693986		Base, Burner		Appelez-nous	-
8	WP90767		Screw, 8-32 X 3/8 (2)   (Replaces: 339527)			Immediately	$ 7.04
9	299372		Orifice, Burner (type 4 (butane))		Appelez-nous	-
9	WP15418		Orifice, Burner (type 1)   (Replaces: 15418)				$ 31.99
9	234870		Orifice, Burner (type 2)				$ 110.82
9	234661		Orifice, Burner (type 3)		Appelez-nous	-
9	WP229742		Orifice, Burner (type 4 (propane))   (Replaces: 299742)				$ 31.37
10	695082		Valve, Gas 50 Hz. (complete)		Appelez-nous	-
11	694421		Screw, Bracket Mounting (8-32 X 1/2) (2)		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	WP307930		Coil, 50 Hz. (2 Terminal) (main)   (Replaces: 695297)				$ 95.14
14	WPY307931		Coil, 50 Hz. Split (3 Terminal) (pilot Position)   (Replaces: 695298)				$ 104.11
15	WP694424		Leak Limiter   (Replaces: 694424)				$ 31.11
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.26
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 21.84
18	WP3401850		Harness, Wiring (complete)   (Replaces: 694426)				$ 218.68
19	694510		Clip, Harness		Appelez-nous	-
20	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
21	233273		Pipe, Gas Supply		Appelez-nous	-
22	345062		Valve & Union, Shut-off		Appelez-nous	-
23	3393767		Pipe, Tail   (Replaces: 233077)				$ 123.97
24	233076		Nut, Compression				$ 43.19
25	341029		Clamp, Pipe (rear)		Appelez-nous	-
26	279243		Conversion Kit Type 1 (natural) To Type 3 (manufactured)		Appelez-nous	-
26	695885		Clamp, Pipe (front)		Appelez-nous	-
26	695237		Conversion Kit (type 1, 2 & 3) To Type (4) L.p.g.				$ 99.59
