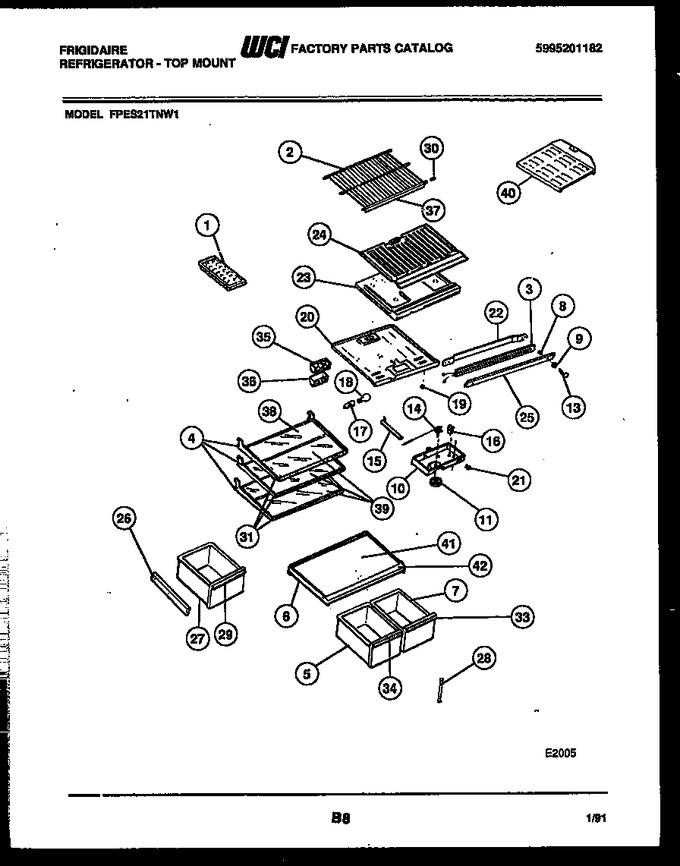

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001324 | Ice Tray (2) |
|
- | |||||
| 2 | 5303208517 | Shelf-freezer |
|
- | |||||
| 3 | 5303210351 | Heater-mullion |
|
- | |||||
| 4 | 3200616 | Frame-canti Shelf (2) |
|
- | |||||
| 5 | 3018873 | Crisper Pan-lh |
|
- | |||||
| 6 | 5303019035 | Cover, Crisper |
|
- | |||||
| 7 | 3018982 | Pan, Crisper, Rh |
|
- | |||||
| 8 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 9 | 5303206754 | Washer-no. 10 Steel (2) |
|
- | |||||
| 10 | 3018895 | Control Box |
|
- | |||||
| 11 | 3018893 | Knob, Temperature Control |
|
- | |||||
| 13 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 14 | 5303018894 | Control-temperature |
|
- | |||||
| 15 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 16 | 5303007400 | Timer-defrost |
|
- | |||||
| 17 | 218906802 | Light Socket (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 18 | 5303001179 | Light Bulb |
|
- | |||||
| 19 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 20 | 3019038 | Top, Refrigerator |
|
- | |||||
| 21 | 5303018896 | Switch, Rocker |
|
- | |||||
| 22 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 23 | 5303019039 | Divider, Styrofoam |
|
- | |||||
| 24 | 5303210641 | Bottom, Freezer |
|
- | |||||
| 25 | 5303200370 | Mullion, Almond |
|
- | |||||
| 26 | 5303210016 | Hanger, Meat Pan, Lh |
|
$ 134.09 | |||||
| 27 | 3018987 | Pan, Meat |
|
- | |||||
| 28 | 5303206507 | Support-crisper Cvr (adj) |
|
- | |||||
| 29 | 3018986 | Trim, Meat Pan |
|
- | |||||
| 30 | 3201150 | Cap Protector (2) |
|
$ 4.57 | |||||
| 31 | 3018732 | Trim-shelf (3) |
|
- | |||||
| 33 | 3017422 | Trim-crisper Pan-rh |
|
- | |||||
| 34 | 3017423 | Trim-crisper Pan-lh |
|
- | |||||
| 35 | 5308014667 | Air Deflector |
|
- | |||||
| 36 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 37 | 5303210636 | Trim-frzr Shelf |
|
- | |||||
| 38 | 3203088 | Retainer-glass Shelf-rear (3) |
|
- | |||||
| 39 | 3200614 | Glass-shelf (3) |
|
- | |||||
| 40 | 5318609501 | Rack-ice Tray |
|
- | |||||
| 41 | 3200389 | Glass, Crisper Cover |
|
- | |||||
| 42 | 3018984 | Trim-crisper Cover |
|
- | |||||
| *41013 | 5303212895 | Container, Ice |
|
- | |||||
| *41013 | 5300170910 | Clip-cantilever Shelf (6) |
|
$ 2.60 | |||||
| 10A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 14A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 16A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 20A | 5303001380 | Screw |
|
- | |||||
| 23A | 3019040 | Wiring Harness-divider (non-illustrated) |
|
- | |||||
| 23B | 3205266 | Edge Protector (non-illustrated) |
|
$ 80.09 | |||||
| 26A | 5303210017 | Hanger, Meat Pan, Rh (non Illustrated) |
|
$ 107.89 | |||||
| 26B | 08014528 | Screw-hanger (2) (non-illustrated) |
|
$ 4.31 | |||||
| 2A | 5304509705 | Grommet-rh (4) (non-illustrated) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 2B | 5304500407 | Grommet-lh (4) (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 31A | 3018724 | Glass-retainer-canti Shelf (2) (non-illustrated) |
|
- | |||||
| 31B | 3203087 | Glass-retainer-mk Shelf (non-illustrated) |
|
- | |||||
| 35A | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 35B | 5303200590 | Extension & Insulation Air Deflector (non-illustrated) |
|
- | |||||
| 39A | 3200901 | Rail-glass Support (6) (non-illustrated) |
|
- | |||||
| 40A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 4A | 3203094 | Frame-mk Shelf (non-illustrated) |
|
- | |||||
| 6A | 5303200329 | Gasket-crisper Cover (non-illustrated) |
|
- |
