SELECT A DIAGRAM

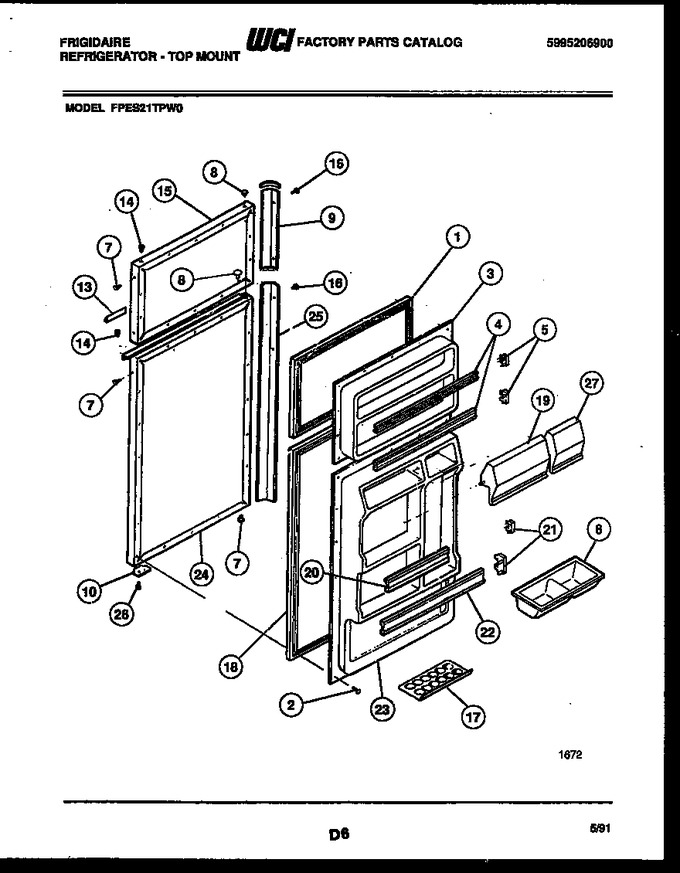

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308017483		Gasket, Freezer		Appelez-nous	-
2	5308002748		Screw		Appelez-nous	-
3	3019030		Panel, Inner Freezer		Appelez-nous	-
4	3017419		Rack, Freezer (2)		Appelez-nous	-
5	5303323480		Support, Rh (2)   (Replaces: 5303017378)				$ 14.18
6	3018973		Utility Bin (2)		Appelez-nous	-
7	5308000181		Plug Button-almd		Appelez-nous	-
8	5303001308		Plug Button-almd		Appelez-nous	-
9	5303272795		Handle-fzr-almond		Appelez-nous	-
10	5308000255		Door Stop-freezer				$ 42.20
13	3201581		Nameplate		Appelez-nous	-
14	5308012007		Bearing (8)		Appelez-nous	-
15	3916119		Panel-freezer-almond		Appelez-nous	-
16	5303272568		Screw-almond (6)		Appelez-nous	-
17	5303018635		Tray, Egg		Appelez-nous	-
18	5308017487		Gasket, Refrigerator		Appelez-nous	-
19	3018868		Door-dairy-lh (large)		Appelez-nous	-
20	3017421		Rack, Refrigerator		Appelez-nous	-
21	5303325990		Support, Rh (2)   (Replaces: 5303203262)			Immediately	$ 17.01
22	3017420		Rack, Door		Appelez-nous	-
23	5303200596		Panel, Inner, Refr		Appelez-nous	-
24	5303916625		Panel-refr-almond		Appelez-nous	-
25	5303272663		Handle-ref-almond		Appelez-nous	-
26	5308011745		Screw				$ 10.38
27	3018974		Door-diary-rh-small		Appelez-nous	-
*46509	5303007739		Insulation-door (bulk)		Appelez-nous	-
10A	5303212491		Door Stop-refrigerator (non-illustrated)		Appelez-nous	-
20A	3205117		Snugger-finger (non-illustrated)		Appelez-nous	-
21A	5303203263		Support-lh (2) (non-illustrated)		Appelez-nous	-
5A	5303323481		Support, Lh (2) (non-illustrated)   (Replaces: 5303017381)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
