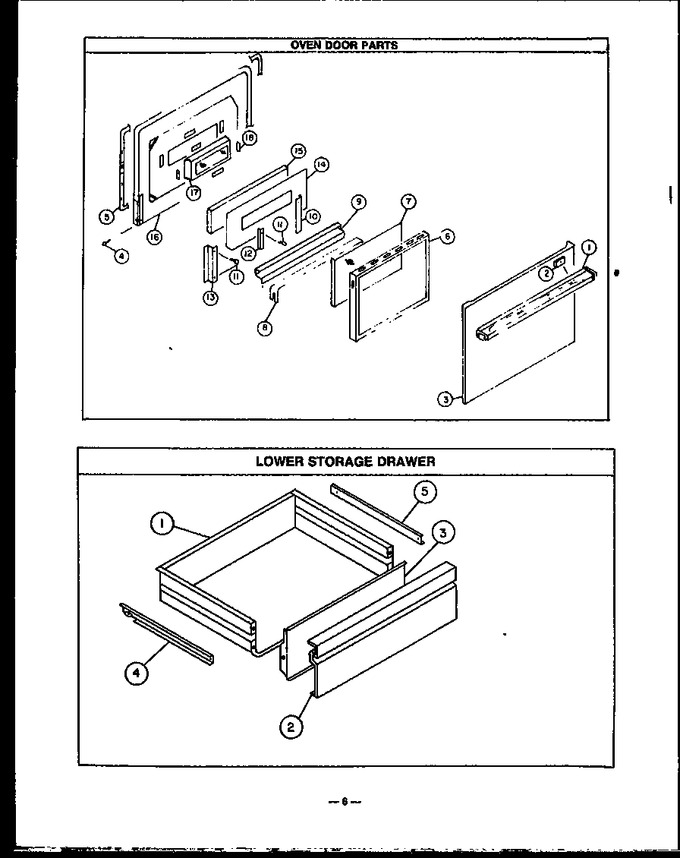

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 70181 | Handle, Oven Door (Replaces: 68150) |
|
Immediately | $ 89.99 | ||||
| 2 | 79978 | Spacer |
|
- | |||||
| 3 | 61173 | Over Door Panel |
|
$ 157.63 | |||||
| 4 | 0091632 | Rivet |
|
- | |||||
| 5 | 0091629 | Seal, Oven Door |
|
- | |||||
| 6 | Y63703 | Frame, Oven Door |
|
- | |||||
| 7 | Y63653 | Black Glass Panel |
|
- | |||||
| 9 | Y63193 | Air Baffle |
|
- | |||||
| 14 | 61965 | Insulation Retainer Top |
|
- | |||||
| 14 | 61964 | Insulation Retainer. Bottom |
|
- | |||||
| 15 | 61960 | Insulation Sub Backer |
|
- | |||||
| 16 | 60873Y | Oven Door Backer |
|
- | |||||
| 17 | 61958 | Window Glass |
|
- | |||||
| 18 | Y0040992 | Sub 52629, Retainer, Glass |
|
- |
