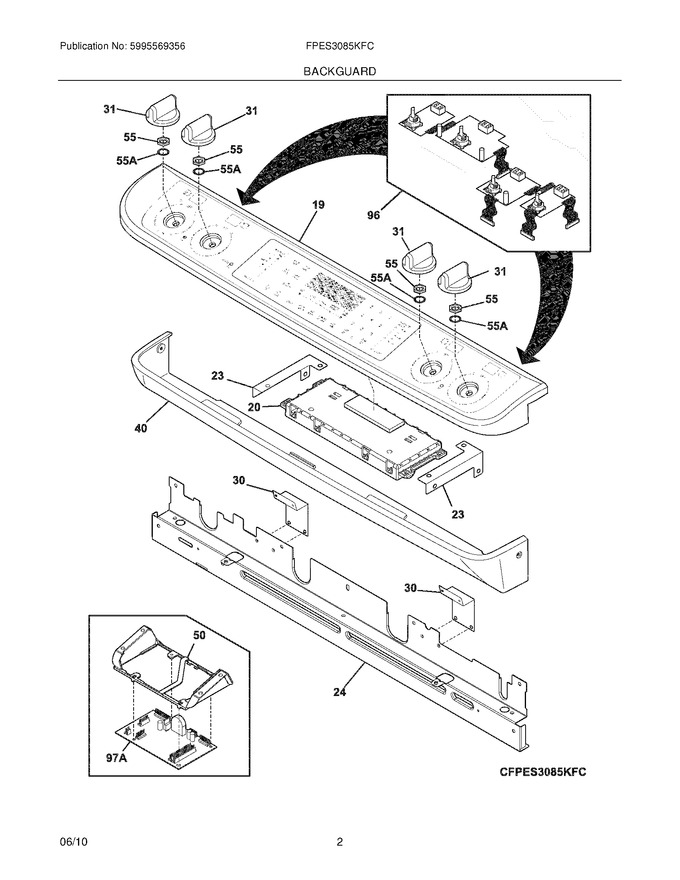

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	318921300		Bracket,control Mtg ,(2)				$ 17.64
24	318913116		Trim,vent ,black ,upper				$ 91.72
30	318928502		Bracket,control Panel ,rear ,(2)   (Replaces: 318928500)				$ 15.60
31	316564406		Knob,control ,stainless				$ 155.22
40	318912907		Panel,service ,silver				$ 302.40
50	318917700		Chassis,uib Mounting				$ 91.46
55	316247700		Nut,mounting				$ 18.20
55A	316247800		Washer,lock ,mtg				$ 18.20
F19	318922144		Panel Assembly,control ,stainless ,w/overlay-trim			Immediately	$ 535.34
F20	316560143		Controller,electronic ,es530w3				$ 363.97
F96	318411401		Control Assembly,complete ,rotary ,w/4 Controls				$ 317.84
F97A	316442062		Board,power ,uib				$ 218.37
FNI	318224873		Harness,wiring ,timer				$ 126.00
FNI	318402398		Harness,wiring ,interface				$ 22.58
FNI	318578318		Harness,wiring ,communication				$ 157.13
NI	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02

    View Diagram in Separate Window       Print Part List
